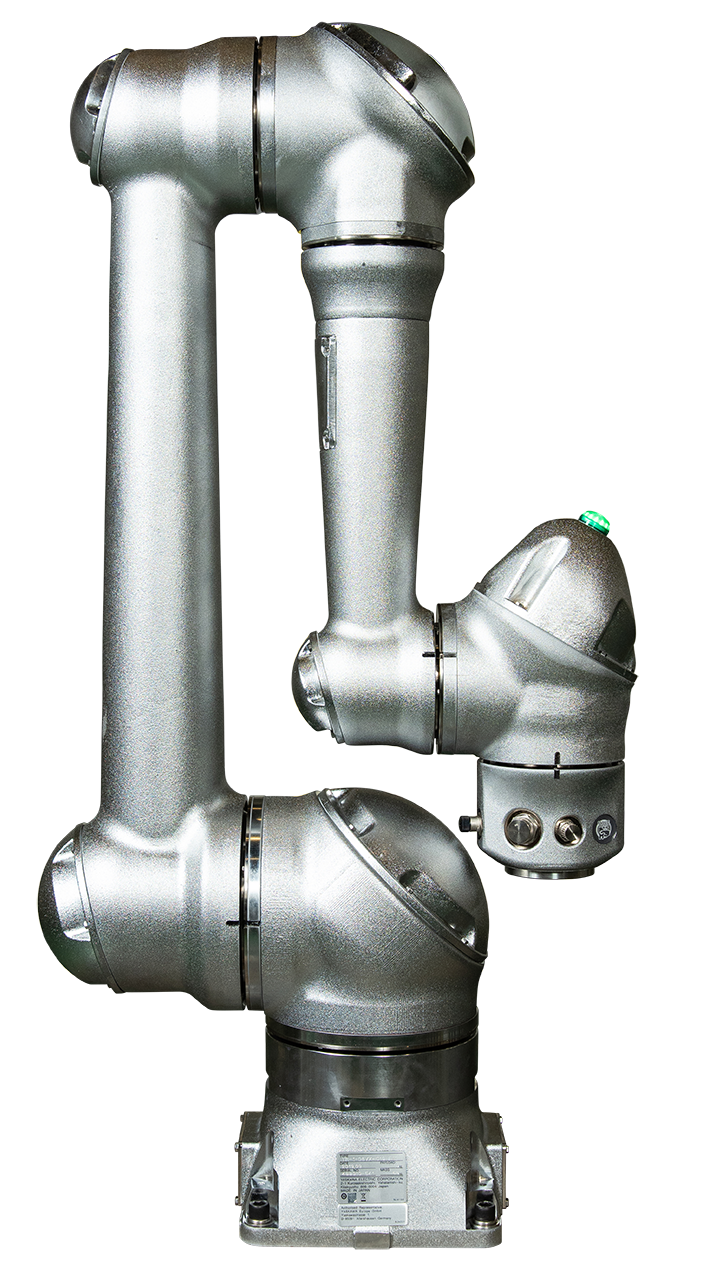

HC10DTFP

Yaskawa 6-axis collaborative robot with 10 kg payload, 1379 mm reach, positional accuracy ±0.05 mm.

Axes	6
Type	Collaborative robot
Reach	1379 mm
Series	Yaskawa HC Series
Weight	58 kg
Payload	10 kg

Description

The MOTOMAN HC10DTFP is a 6-axis robot suitable for collaborative operation with a payload of up to 10 kg. It offers an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P of) of 1,200 mm. This Cobot is compatible with both 1-phase and 3-phase power supplies. The MOTOMAN HC10DTFP has a chemical proof surface resisting acid or alcaline cleaning fluid. Complying to EN 60529-IP67, it is dust and waterproof protected to operate in harsh environments. Protection class IP67 for Food Grade Grease and ISO cleanroom class 5 allow these robots to be used in food related applications, as well as in Life Science Applications. Supplied, integrated and supported in India by Rajdeep Automation.
