HC20DTP
Yaskawa

HC20DTP

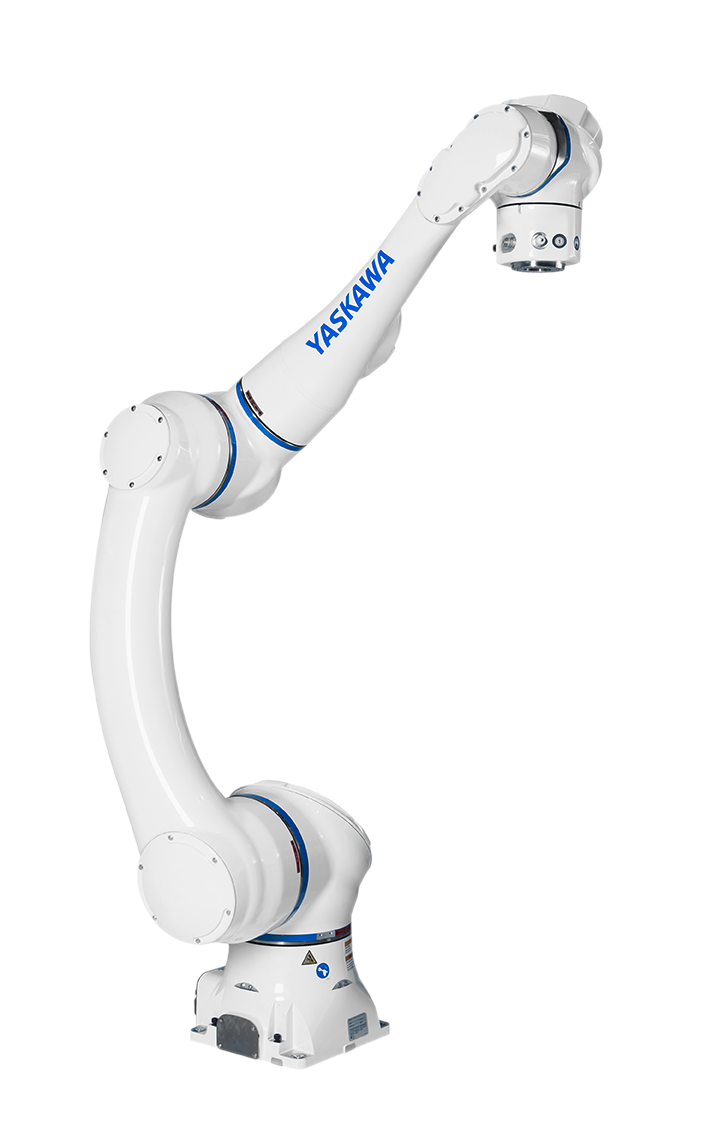

Yaskawa 6-axis collaborative robot with 20 kg payload, 1900 mm reach, positional accuracy ±0.05 mm.

Axes6
TypeCollaborative robot
Reach1900 mm
SeriesYaskawa HC Series
Weight140 kg
Payload20 kg
Request a Quote

Description

The Cobot HC20DTP is a human-collaborative robot with a superior payload of 20 kg. It offers an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,900 mm and an effective reach (S/L-Axis center of rotation to Point P of) of 1,700 mm. This Cobot is compatible with both 1-phase and 3-phase power supplies. Specifications like high IP67 (dust/liquid proof) protection rating, food grade grease lubrication in all joints, and a a special drip proof coating allows the robot to be used in certain food related applications. Supplied, integrated and supported in India by Rajdeep Automation.
