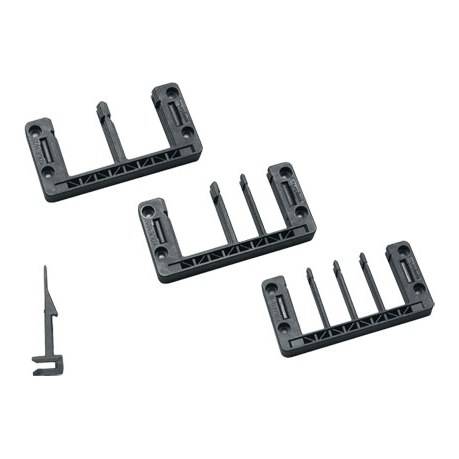

Murrplastik KDL/E
Murrplastik cable entry system for routing pre-assembled cables into control cabinets.
| Material | Polyamide 6.6 |
| Protection | IP54 (with suitable grommets and cables) |
| Temperature | -60 °C–80 °C |
| Fire classification | acc. to UL94: V0 |
Description
The cable entry systems for the insertion of pre-assembled cables with open top frame. Single-piece frame Easy and very quick assembly Snap in, screwing on is not necessary Protection class: IP 54 (with suitable grommets and cables) Thermal stability: -60 °C – +80 °C Fire classification: V0 Material: Polyamide 6.6 RoHS compliant UV resistant Made in Germany Catch hook for 1.5mm – 2.0mm plate thickness included with delivery, additional catch hooks for up to 4.0 mm plate thickness available Suitable for standard cut-outs for 24-pin and 16-pin industrial connectors Easy to realize EMC solution with discharge plate Suitable grommets: KDT/ZE
Applications
- Inserting pre-assembled cables into control cabinets
- Cable entry through 24-pin and 16-pin connector cut-outs
- EMC-compliant cable entry using a discharge plate
- Snap-in cable entry for fast panel assembly by machine builders
