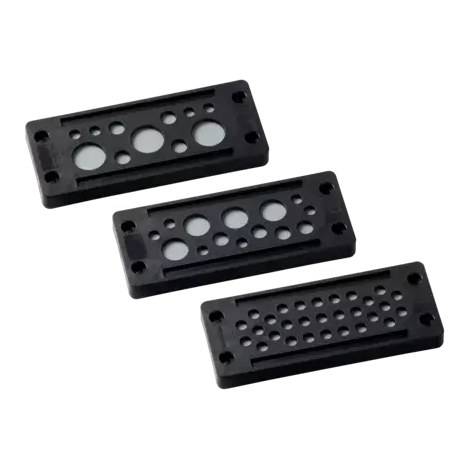

Murrplastik KDP/X
- Huge time savings in assembly
- Very good cost-performance ratio
- High packing density
- Standard cut-out dimensions
- Tool-free assembly with catch hooks or optional screw fastening
- Marking possibility
- Protection class IP65
| Material | Housing: Polyamide 6.6 Seal: TPU / EPDM |
| Protection | IP65 |
| Temperature | -45 °C–70 °C |
| Fire classification | Frame: V0 Block: HB |
| Enclosure rating | NEMA 12 |
| Protection level | IP65 |
Description
Murrplastik cable entry plate: the alternative to cable fittings. Suitable for standard cut-outs for 24-pin Harting and Wieland connectors. For snap-in fastening and/or screwing in place; snap-in at plate thicknesses of 1.5 to 2.0 mm. High degree of strain relief.
Applications
- Routing pre-assembled cables into control cabinets without cutting connectors
- Cable entry through 24-pin Harting and Wieland connector cut-outs
- High-density sealed cable entry on machine control panels
- Fast panel assembly for OEM machine builders
