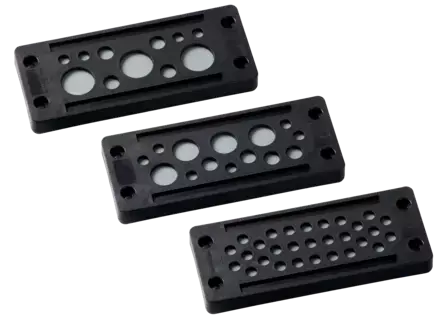

Without connector
- Plastic cable entry plate with snap-in function and one instead of two elastomer plates
- Economical connection technology for tool-free wiring of equipment and machinery
- The alternative to cable fittings
- Very good strain relief
- Protection class: IP 65
- Thermal stability: -30 °C to +70 °C
- Material: Housing Polyamide 6.6 / Seal: TPU/EPDM
- RoHS compliant
- UV resistant
- Made in Germany
- Suitable for standard cut-outs for 24-pin industrial connectors
- Assembly possible with catch hooks (sheet thickness 1.5 mm - 2.0 mm) or with M5 screws
- Properties
- Plastic cable entry plate plastic type KDP/X 24 LABS free
| Protection level | IP65 |
| Temperature range | -22 - 158°F |
| MATERIAL PROPERTIES | Enclosure: Polyamide 6.6 Seal: TPU / EPDM |
| Flammability classification | V0 |
Description
Murrplastik : The terms KDP/X24, KDP/ZR, KDP/N24, KDP/F24, KDT/ZE+ and KDP/Z refer to various types of plastic cable entry plates manufactured by Murrplastik. These products are used in industrial settings, such as control cabinets and machine construction, to feed cables and pneumatic hoses into an enclosure while providing protection from dust and liquids The KDT/ZE+ is a complementary cable grommet that is used with these plates to seal the opening around the cable, and it requires a cable tie for strain relief.
