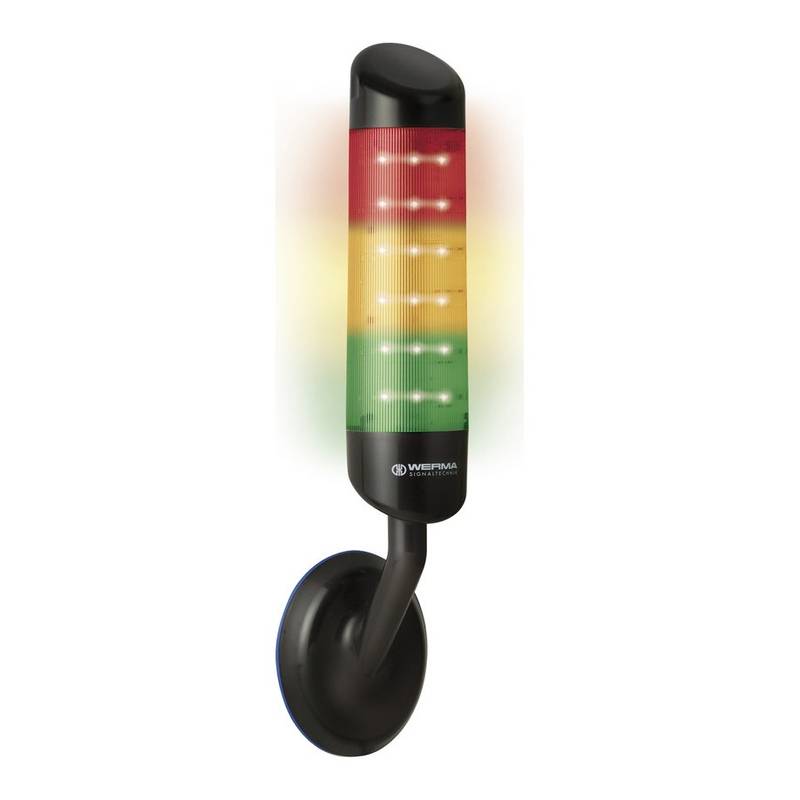

CleanSIGN
- CleanSIGN WM Contin. tone 24VDC GN/YE/RD
- Continuous light in red, yellow and green.
- With integrated, loud buzzer (85 dB).
- IP67/69k.
- Fulfills Air Cleanliness Class 2 for Cleanroom applications in accordance with DIN EN ISO 14644-1.
Description
Part: 695.300.55, 695.310.55 WERMA: LED signal tower for use in clean rooms (Fraunhofer IPA approval) and food applications.
Technical Specifications
Mechanical
| Shaft | 76 mm |
| Temperature range | Working temperature minimum -30°C Working temperature maximum +60°C |
| Protection category | IP67 IP69K |
| Mounting | Wall mounting |
Electrical
| Operating voltage | 24V DC |
| Rated operational current | 380 mA |
| Connection | cable |
