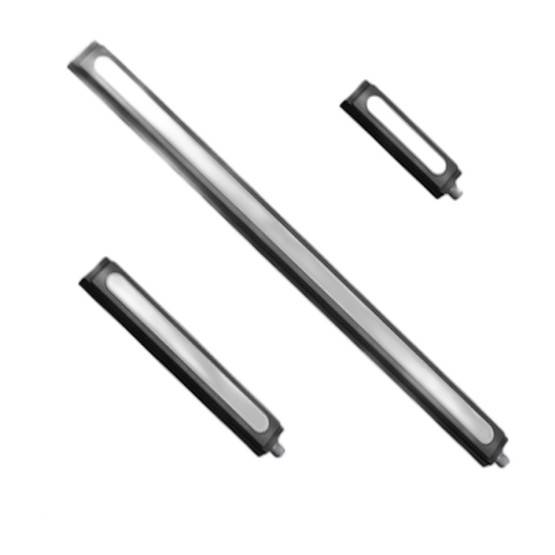

Machine integrated light

Optimum visibility
Reliably signals hazards or critical machine states
Light modules with additional acoustic warning
Can be configured in 50mm increments between 100mm and 1500mm
Different light contours and images

Werma : With LineLIGHT Fusion, WERMA offers a fully integrable signalling solution that integrates seamlessly into the complete system. The standardised.LineLIGHT modules display all machine statuses as functional and integrated design elements. This transfers all the advantages of signalling in terms of safety, efficiency and productivity into the design of the machine.

LineLIGHT	Summary
300.100.02	LineLIGHT Fusion 100 mm ,24V, Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour).
300.100.17	LineLIGHT Fusion 300 mm ,24V, Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour).
300.100.18	LineLIGHT Fusion 300 mm, 24V ,Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour).
300.100.66	LineLIGHT Fusion Segment 200 mm ,24V,Current Consumption 170 mA,Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour)
300.100 .67	LineLIGHT Fusion Segment 300mm ,24V,Current Consumption 210 mA ,Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour)
300.100.65	LineLIGHT Fusion Segment 200 mm ,24V,Current Consumption 160 mA,Colour options Red, yellow, green, white, blue, violet, turquoise (Multicolour)

Technical Specifications

Mechanical

Housing Material	Aluminium, black
Dimension (L x H x W)	100 mm : 145 x 33 x 23 mm 200 mm : 245 x 33 x 23 mm 500 mm : 545 x 33 x 23 mm
Lens	PC, transparent
Protection rating	IP54; IP65
Colour options	Red, yellow, green, white, blue, violet, turquoise (Multicolour)
Connection	M12 5-pin

Electrical

Supply Voltage	24 V DC - PNP/NPN
Working temperature	-20°C/+50°C
Tone type	Pulse tone
Sound Output	85 dB
Current consumption	From 100mA (100mm) to 830mA (1.5 metres)
