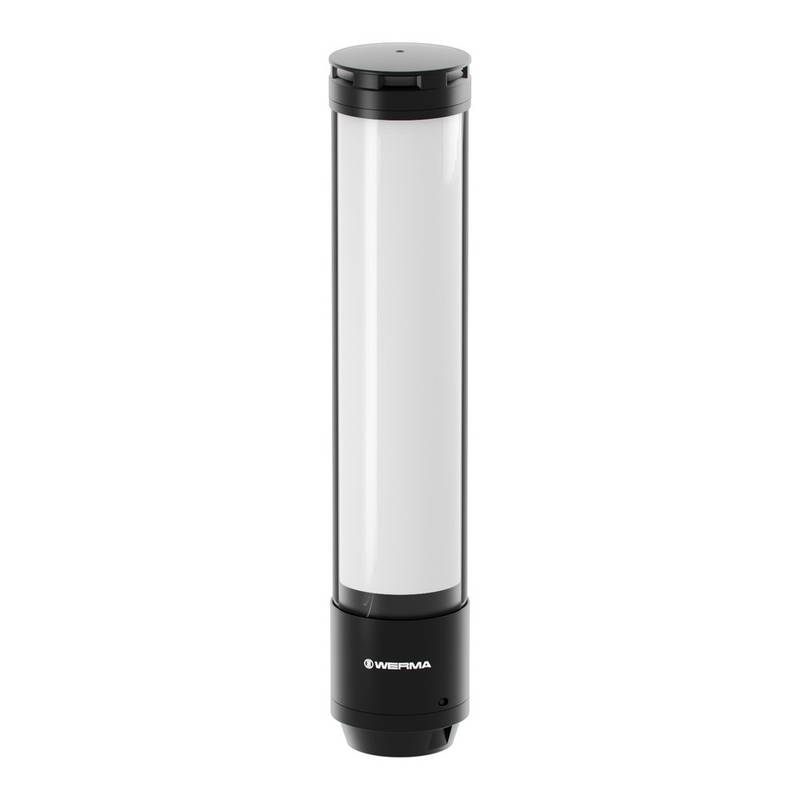

eSIGN 15 segments

eSIGN IO-Link 15 Segments with Siren BK
Visibility, individuality and efficiency.
Fulfills Air Cleanliness Class 2 for Cleanroom applications in accordance with DIN EN ISO 14644-1.
Full-surface signalling with clear and unmistakeable light effects for maximum visibility.
Versatile customisation options with different modes and light effects.
UL Type 4X ensures resistance to UV radiation and environmental influences.
Classic signal tower indication in individual tiers.
Autoscale mode for full-surface signalling and optimum visibility.
Variable filling level indication from 0 to 100 %.
Individual triggering to suit your requirements.

Description

Part: 657.610.55 (IO-Link with siren), 657.600.55 (24 V with siren) WERMA : An electronically modular signal tower that sets new standards in terms of visibility, individuality and efficiency.

Technical Specifications

Mechanical

Shaft	72 mm
Temperature range	Working temperature minimum -20°C Working temperature maximum +50°C
Protection category	IP66 IP69K
Mounting	Base mounting

Electrical

Operating voltage	24V DC
Rated operational current	620 mA
Connection	M12 plug 4-pole
