Murrplastik EWL-PAB
- Plant engineering
- Mechanical engineering
- Vehicle engineering
| Material | mod. polyamide PA 6 |
| Temperature | -45 °C–120 °C short term 160 °C |
| ECE 324 R 118 | Annex 6+8 |
| Impact strength | 3 According to IEC EN 61386 M25/P21 Testing at -25 °C |
| Chemical resistance | Alcohol Mineral oils Greases Fuels |
| Fire classification | acc. to UL94: V0 self-extinguishing |

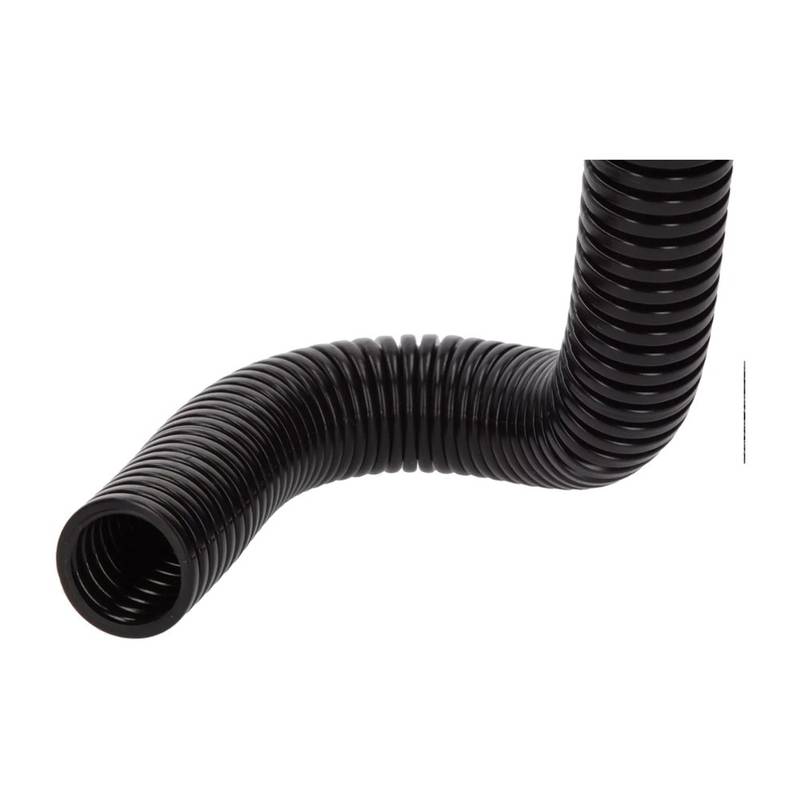

Description
The EWL-PAB cable protection conduits are made of specially modified poly- amide 6. The material is halogen, phosphor and cadmium-free. The affordable EWL-PAB cable protection conduits are characterized by their excellent self-extinguishing properties and high crush and impact resistance. For static applications involving low to medium mechanical loads.
Applications
- Protecting cables in plant and mechanical engineering installations
- Cable protection on vehicle and rolling stock wiring
- Routing cables on machines exposed to oils and greases
- Static cable protection on conveyors and process plants
