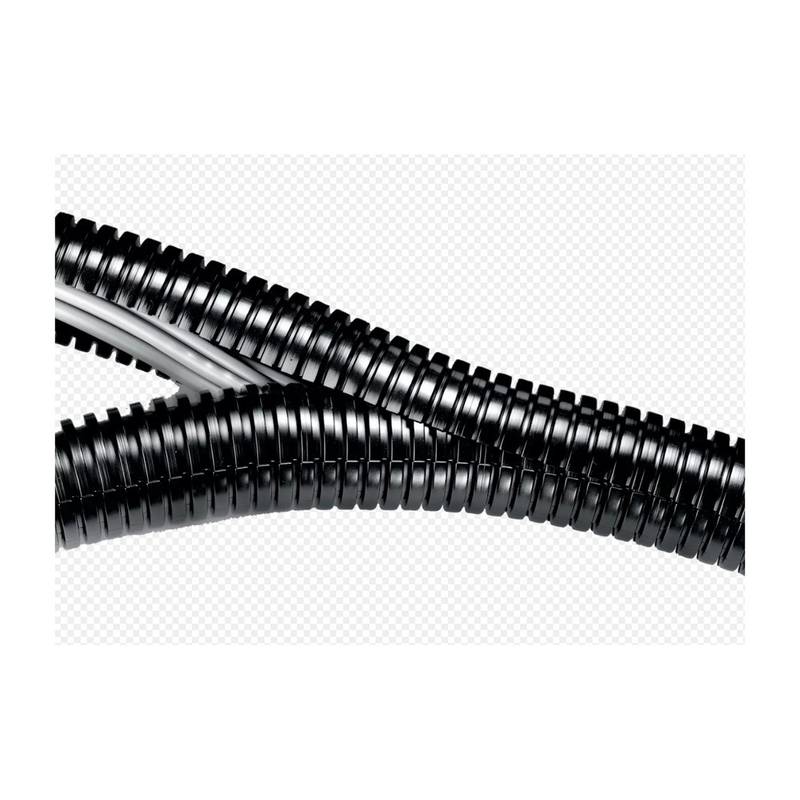

Murrplastik EWT-PA
- Cable protection conduits can be opened and closed at any time.
- Mounting of pre-assembled cables
- Retrofitting or repair in mechanical and plant engineering
| Material | mod. polyamide PA 6 |
| Temperature | -40 °C–120 °C short term 160 °C |
| Impact strength | 3 According to IEC EN 61386 M25/P21 Testing at -25 °C |
| Chemical resistance | Alcohol Mineral oils Greases Fuels |
| Fire classification | acc. to UL94: HB |
| High angle consistency | > 350 N 50 x 50 mm According to IEC EN 61386 M25/P21 Testing at 23 °C > 600 N 100 x 100 mm According to IEC EN 61386 M25/P21 Testing at 23 °C |
Description
The EWT-PA cable protection conduits are made of specially modified poly- amide 6. The material is halogen, phosphor and cadmium-free. The conduits are suitable for static applications involving light to medium mechanical loads. The EWT-PA cable protection conduits consist of a two-piece slit conduit
Applications
- Retrofitting or repairing cables without disconnecting them
- Routing pre-assembled cables with connectors on machines
- Cable protection in plant engineering exposed to oils and greases
- Bundling and protecting wiring on machine tools
