EWT-PP
Murrplastik

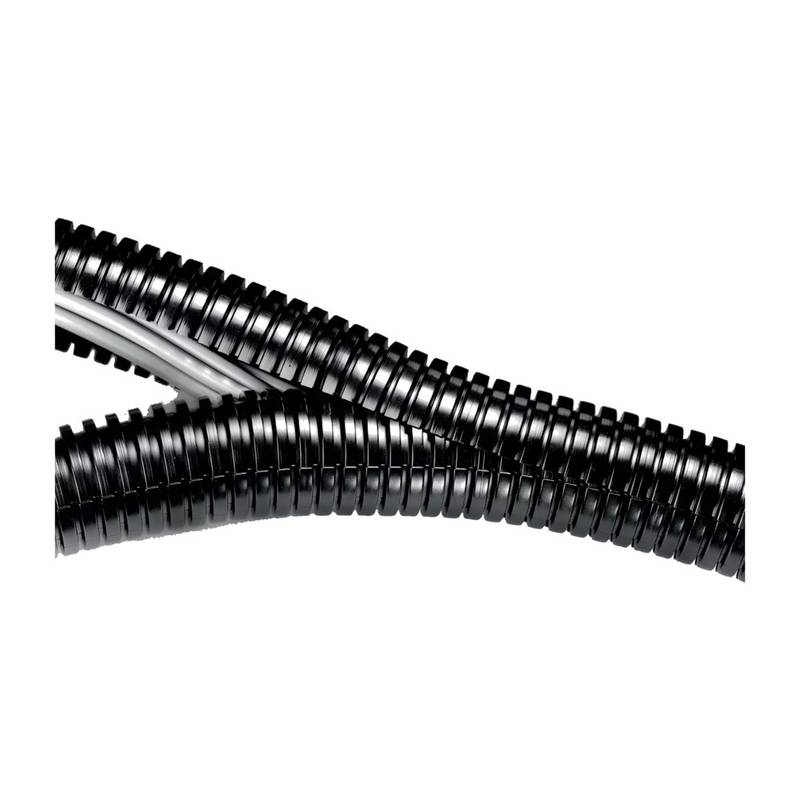

Murrplastik EWT-PP

  • Corrugated conduits can be opened and closed at any time.
  • Mounting of pre-assembled cables
  • Retrofitting or repair in mechanical and plant engineering
Materialmod. polypropylene
Temperature-40 °C–130 °C short term 150 °C
Impact strength3 According to IEC EN 61386 M25/P21 Testing at -25 °C
Chemical resistanceAlcohol Greases Lyes Weak acids Mineral oils Fuels
High angle consistency> 230 N 50 x 50 mm According to IEC EN 61386 M25/P21 Testing at 23 °C > 450 N 100 x 100 mm According to IEC EN 61386 M25/P21 Testing at 23 °C
System tear-out strength> 320 N According to IEC EN 61386 M25/P21 Testing at 23 °C Fitting SVT
Not sure this is the right model? Read the cable entry systems selection guide →

Description

The EWT-PP cable protection conduits are made of specially modified poly- propylene. The material is phosphor and cadmium-free. For static applicati- ons involving light to medium mechanical loads. The EWT-PP cable protection conduits consist of a two-piece slit corrugated conduit system

Applications

  • Routing pre-assembled cables in openable corrugated conduit
  • Cable repair and retrofit work in machine building
  • Protecting wiring on machines exposed to oils and fuels
  • Lightweight cable protection in plant installations
