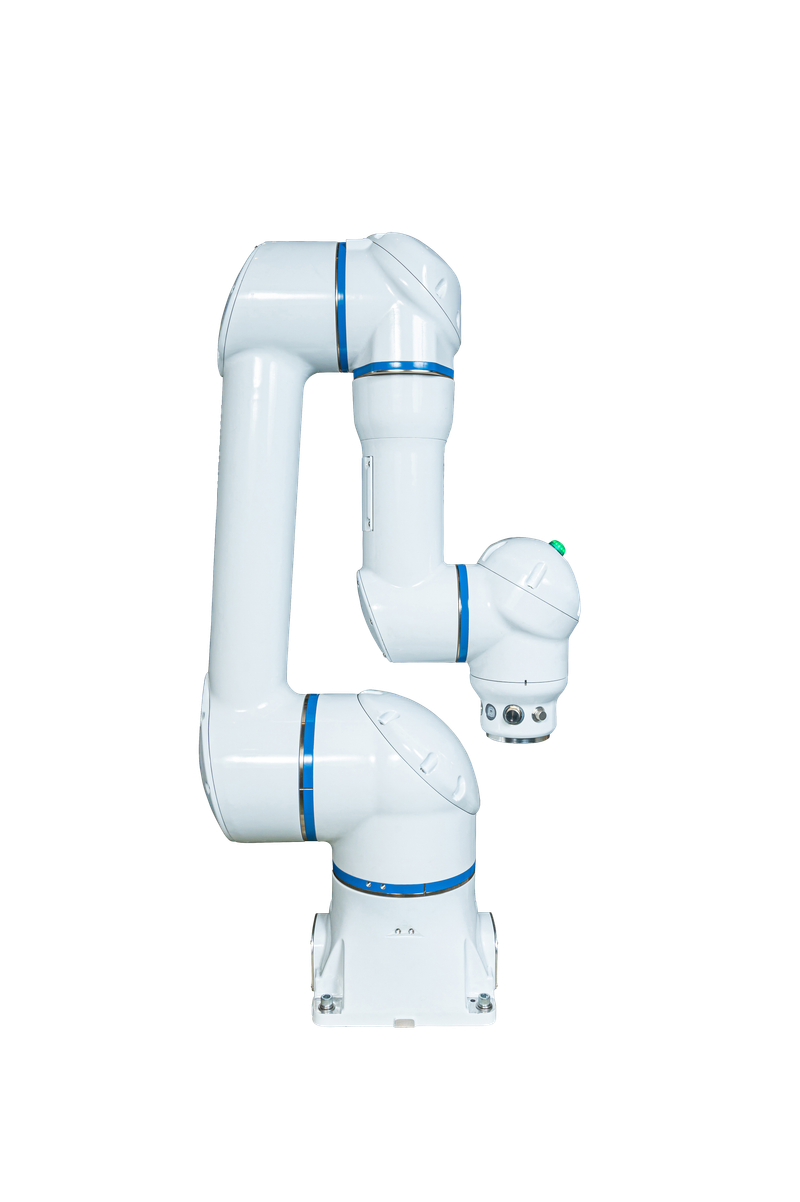

HC20SDTP

Yaskawa 6-axis collaborative robot with 20 kg payload, 1412 mm reach, positional accuracy ±0.05 mm.

Axes	6
Type	Collaborative robot
Reach	1412 mm
Series	Yaskawa HC Series
Weight	97 kg
Payload	20 kg

Description

As a shortened version of the HC20DTP cobot from the collaborative HC series, the 6-axis HC20SDTP cobot, with its payload capacity of 20 kg, is ideally suited to operation in confined work environments. The HC20SDTP cobot is particularly suitable for applications requiring a shorter reach and high stiffness characteristics, e.g. screw fastening or assembly. Handling and Pick&Place applications with little space and short motion distances can also be implemented with this cobot. This Cobot is compatible with both 1-phase and 3-phase power supplies. The Plug&Play connection of grippers is facilitated by the ISO flange as well as configuration wizards on the Smart Pendant. Thanks to the integrated torque sensors in each joint, the cobot can be used collaboratively and without a safety fence. Supplied, integrated and supported in India by Rajdeep Automation.
