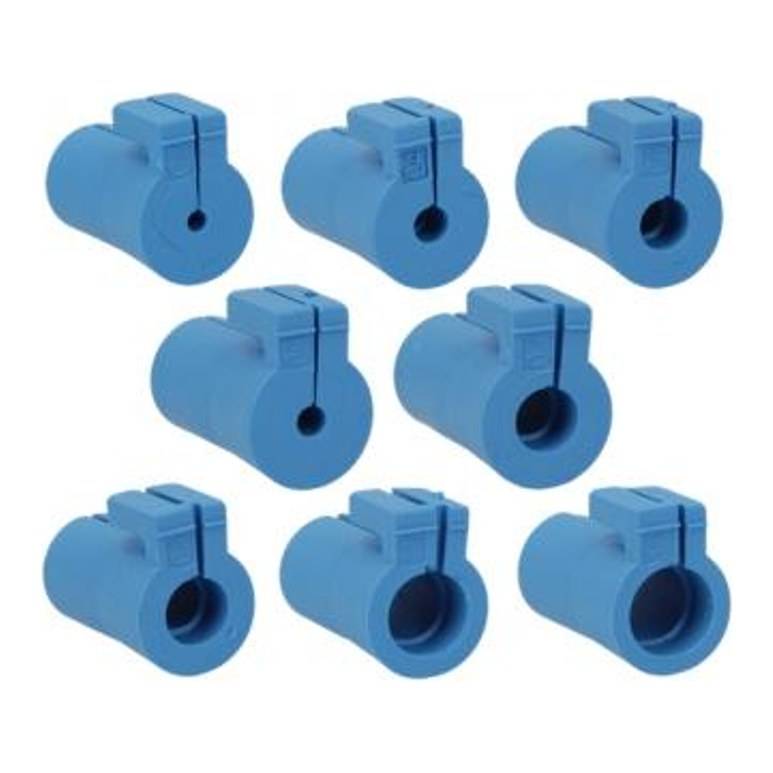

Murrplastik KDL/H
Murrplastik cable entry system for routing pre-assembled cables into control cabinets.
| Material | Frame: ZN/Alu/VA Block: Thermoplastic elastomer (TPE) |
| Protection | IP66/67 (with suitable grommets and cables) IP69K (with matching housing) |
| Temperature | -45 °C–100 °C short term -65 °C |
| Fire classification | acc. to UL94: V0 |
Description
The cable entry system for the insertion of pre-assembled cables in a very stable and robust design made of zinc die-cast or aluminum. IP69K only for KDL/H-VA. 2-piece or 3-piece frame Easy assembly High packing density for up to 48 cables Integrated strain relief RoHS compliant UV resistant Made in Germany Suitable for standard cut-outs for 24-pin and 16-pin industrial connectors as well as two special sizes (single row and round M50) Suitable grommets: KDT/X
Applications
- Robust cable entry for pre-assembled cables on heavy machinery
- High-density entry of up to 48 cables in control cabinets
- Metal cable entry frames for steel plants and harsh environments
- IP69K cable entry with KDL/H-VA in washdown areas
