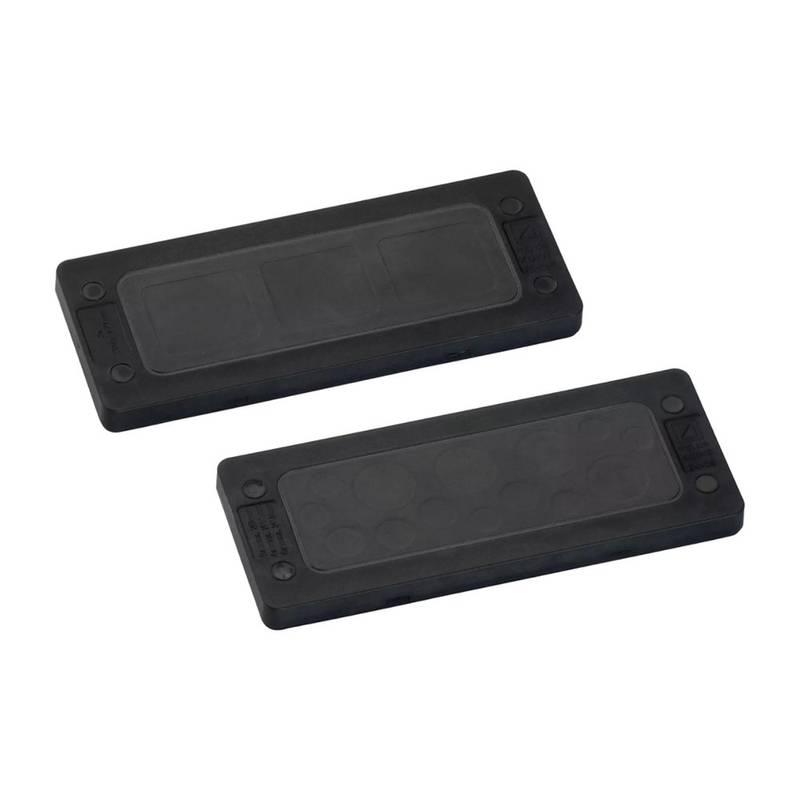

Murrplastik KDP/F
Murrplastik cable entry system for routing pre-assembled cables into control cabinets.
| Material | Frame: Polypropylene (PP) Seal: Thermoplastic elastomer (TPE) |
| Protection | IP65 |
| Temperature | -45 °C–70 °C |
| Fire classification | HB |
Description
Very flat plastic cable entry plate Enormous time savings in assembly High packing density Large wire diameter ranges Several cables may be fed through an opening together no strain relief Protection class: IP 65 Fire classification: HB Thermal stability: -30 °C to +70 °C Material: Frame: Polypropylene (PP) / Seal: TPE RoHS compliant UV resistant Made in Germany Suitable for standard cut-outs for 24-pin industrial connectors Assembly with clips or M5 screws possible
Applications
- Flat cable entry into control cabinets through 24-pin connector cut-outs
- Feeding several cables through one opening in machine panels
- High-density cable entry for OEM panel builders
- Sealed cable entry on outdoor and UV-exposed enclosures
