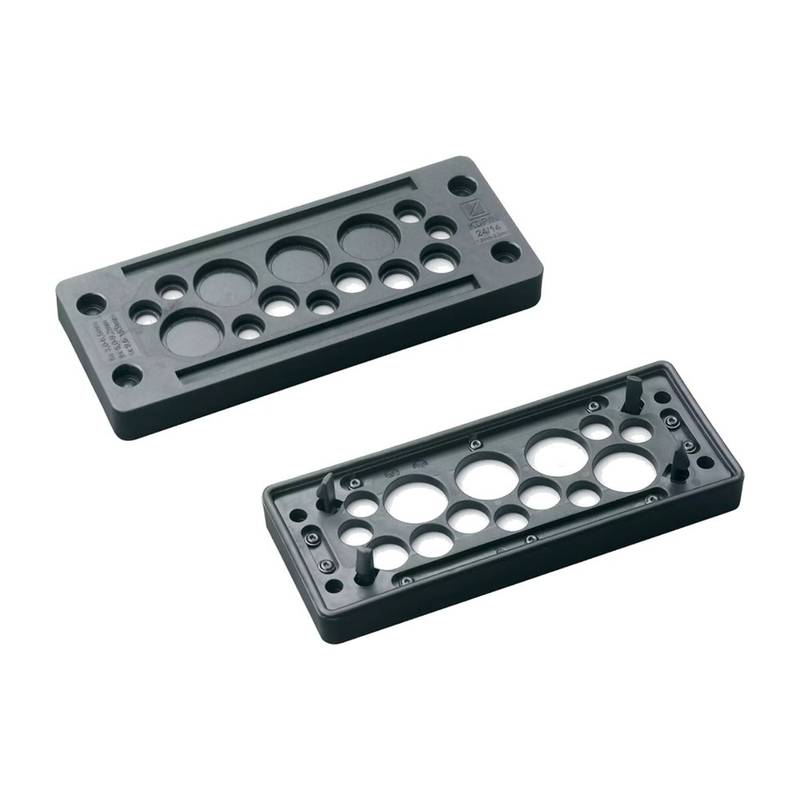

KDP/N
Murrplastik cable entry system for routing pre-assembled cables into control cabinets.
| Material | Housing: Polyamide 6.6 Seal: TPU / NBR / EPDM |
| Protection | IP65 |
| Temperature | -45 °C–70 °C |
| Fire classification | Frame: V0 Block: HB |
Description
Snap-in plastic cable entry plate with two elastomer plates Economical connection technology for tool-free wiring of equipment and machinery The alternative to cable fittings Very good strain relief Protection class: IP 65 Thermal stability: -45 °C to +70 °C Material: Frame: Polyamide 6.6 / Seal: TPU/NBR/EPDM RoHS compliant UV resistant Made in Germany Suitable for standard cut-outs for 24-pin industrial connectors Assembly possible with catch hooks (sheet thickness 1.5 mm - 2.0 mm) or with M5 screws
