KDP/Z
Murrplastik cable entry system for routing pre-assembled cables into control cabinets.
| Protection | IP66/67 IP69K (with matching cables) |
| Temperature | -45 °C–70 °C |
| Fire classification | acc. to UL94: HB |
Description

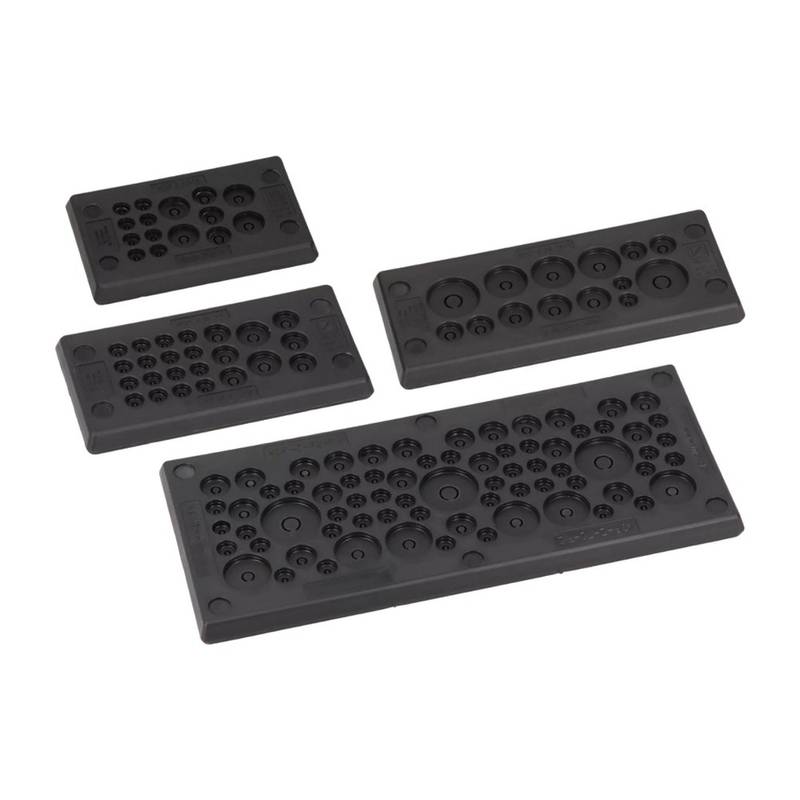

Very flat cable entry plate made of plastic with a 2-component design and best properties Enormous time savings in assembly High packing density Large wire diameter ranges Good strain relief Protection class: IP66/67, IP69K (with matching cables and screwed) Fire classification: HB Thermal stability: -30 °C to +70 °C Material: Frame: Polypropylene (PP) / Seal: TPE RoHS compliant UV resistant Made in Germany Suitable for standard cut-outs for industrial connectors Assembly with clips or M5 screws possible
