RST 56
Werma

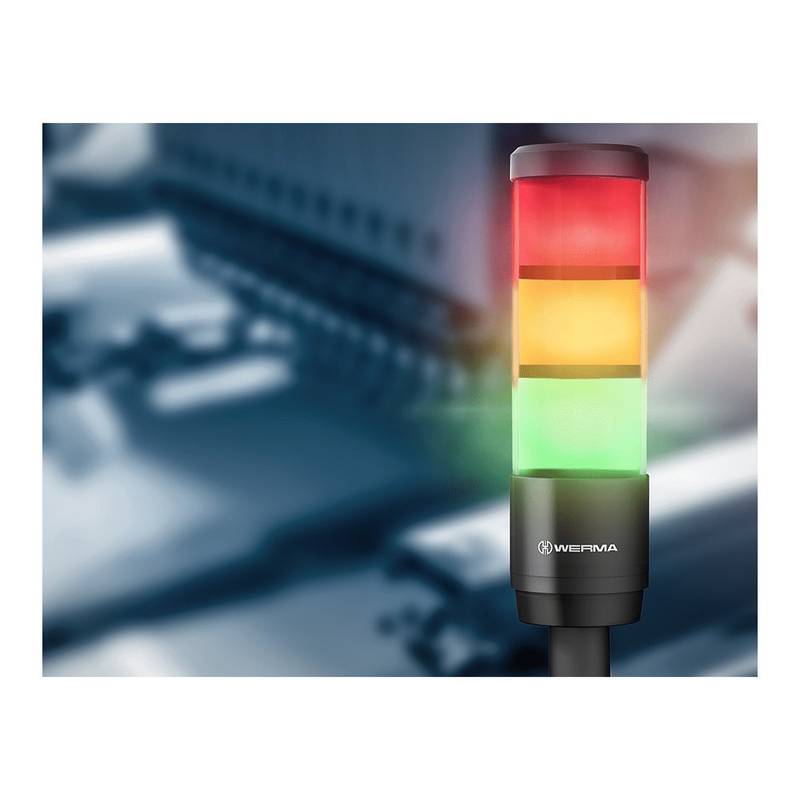

Werma RST 56

Genuine Werma product, supplied in India by Rajdeep Automation, the authorised Werma distributor.

  • Modern & robust industrial design
  • 2 to 5 tiers
  • 360° visibility - no blind spots
  • Buzzer: Maximum 90 dB
  • Can be connected via cable or M12
  • Tamper-proof for public areas
  • The IP66/IP69K degree of protection enables use in a wide range of environments
Not sure this is the right model? Read the signal towers & stack lights selection guide →

Description

WERMA Light : The aesthetic signal tower also impresses with sophisticated features, a compact, slim diameter of 57 mm, multiple mounting options and a high protection rating of IP 66 / IP 69k. With a diameter of just under 60 mm, the RST is ideal for small to medium-sized machines, systems, control cabinets and apparatus engineering.

Technical Specifications

Mechanical

HousingPC/ABS-Blend
Lens colour/Housing colourclear/black
Fixing
  • Base mounting
  • Tube mounting
  • Installation mounting M30

Electrical

Light effectsLED Permanent light
Tone typePermanent tone (Installation mounting) Multi-tone (Base/Tube mounting)
Operating temperature min./max.-30°C / +50°C
Protection ratingIP 66/69k

Applications

  • Status signalling on small and medium-sized machines
  • Tamper-proof signalling for machines in public areas
  • Washdown-resistant status lights on food and pharma machines
  • Audible and visual alarms on control cabinets and apparatus
  • Machine status indication on CNC and assembly stations
