Murrplastik Type KPX
- The large printable area at the top allows room for individual project
- High-quality, halogen-free snap-in label plates. Labels available for moun-
- ting individually or in strips.
| Material | Polycarbonate (PC) |
| Temperature | -40 °C–130 °C |
| Fire classification | V0 |
| Fire properties | Fire classification V0 |
| Temperature range | -40 °C – 130 °C |
| Material Properties | Polycarbonate (PC) |
Description

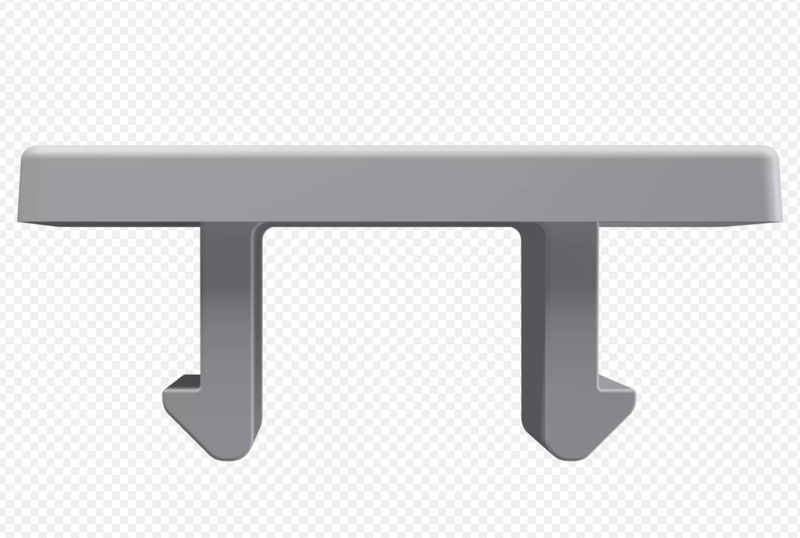

KPX - for terminal manufacturersPhoenix, ABB Entrelec, Murrelektronik, Siemens and Wago. High-quality, halogen-free snap-in label plates. Labels available for moun- ting individually or in strips. The large printable area at the top allows room for individual project and terminal block reference, dispensing with the need for additional organisa- tional systems. Label plates designated as „5 - 6 mm-pitch strips“ can be adapted to terminal block widths of 5 mm or 6 mm by means of an extension spring joint. Label plates designated as „Universal strip“ can be used on various different terminal block widths. The 6/180 labelling strips can be printed with a laser printer set up for the required terminal block width.
Applications
- Labelling terminal blocks and devices in control panels
- Project-specific device marking in switchgear and MCC panels
- Marking components in flame-resistant panel installations
- Labelling in panels for machine builders and OEMs
