Type ZL
Murrplastik

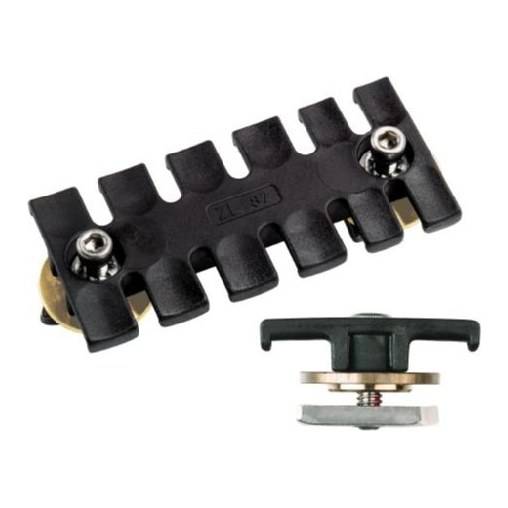

Murrplastik Type ZL

  • Very rapid assembly
  • Tidy, organized wiring routing
  • Simple and effective strain relief with cable ties
  • EU railway approva
  • Halogen free
  • UV resistant
  • Microencapsulated thread pre-coating as additional safety component with Type ZL-AM / ZL-SW
MaterialBar: Polyamide 6.6
Temperature-45 °C–125 °C
Fire classificationV0
Fire properties EN45545
  • C.I.T. R22 / R23 HL3 : 0
  • 44 EN 17084 Ds (max.) R22 / R23 HL3 : ≥ 32 % ISO 4589-2 LOI R22 / R23 HL3 : 59 ISO 5659-2
Temperature range-40 – 125 °C
MATERIAL PROPERTIESPolyamide 6.6
Not sure this is the right model? Read the cable entry systems selection guide →

Description

Murrplastik Strain relief: The ZL strain relief plate may be used wherever the strain of cables, hoses, cords, wires or conduits must be relieved or they are to be routed in a secure, easy and cost-effective way. The insertion of the ELB bush stops the cold extrusion characteristic of plastic from affecting the secure fixing of the plate. The DH spacer sleeve is needed for two-tier mounting. Approved for railway technology

Applications

  • Strain relief for cables and hoses in control cabinets
  • Organised cable routing and fixing in machine panels
  • Cable fixing in railway rolling stock and infrastructure panels
  • Two-tier cable fixing with spacer sleeves in large switchboards
