Unitronics
Expansion IO
- Expand your system with flexible IO options
- Suitable for local and remote expansion adapters
- I/O options include digital, analog, high-speed, temperature & weight
Unitronics wide range of expansion IO modules that will fit your system’s precise requirements.
| Expansion Module | Summary | |
|
Digital
|

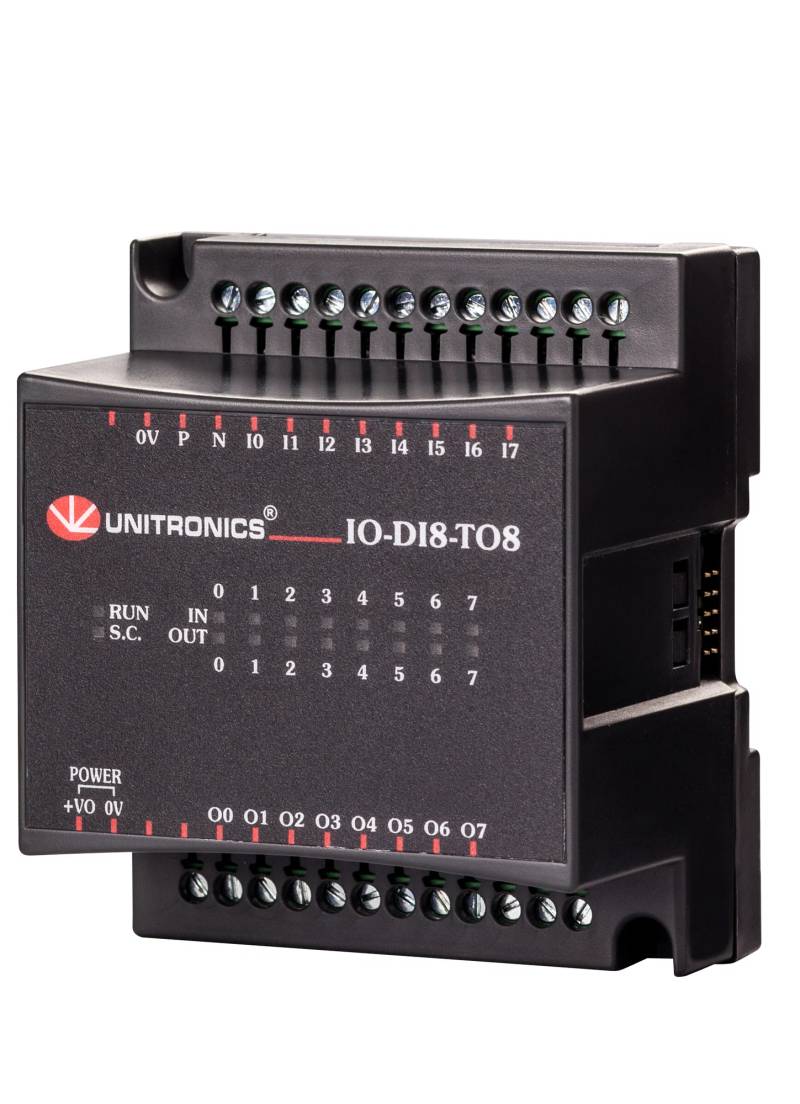

IO-DI8-TO8 | 8 Inputs(pnp/npn), 8 Outputs(pnp) |
| IO-DI8-RO4 | 8 Inputs(pnp/npn), 4 Relay Outputs | |
| IO-DI8-RO8 | 8 Inputs(pnp/npn), 8 Relay Outputs | |
| EX90-DI8-RO8 | 8 Inputs(pnp/npn), 4 Relay Outputs (Built-in Adapter) | |
| IO-DI16 | 16 Digital Inputs(pnp/npn) | |
| IO-TO16 | 16 Outputs(pnp) | |
| IO-RO8 | 8 Relay Outputs | |
| IO-RO16 | 16 Relay Outputs | |
| IO-DI8ACH | 8 110/220VAC Inputs | |
|
Analog, Temperature and
Weight/Strain Measurements |
IO-AI4-AO2 | 4 Analog Inputs, 2 Analog Outputs |
| IO-PT400 | 4 RTD Inputs PT100, NI100, NI120 | |
| IO-PT4K | 4 RTD Inputs PT1000, NI1000 | |
| IO-AO6X | 6 Isolated Analog Outputs | |
| IO-LC1 | 1 Loadcell Inputs, 1 Digital Input, 2 Output | |
| IO-LC3 | 3 Loadcell Inputs, 1 Digital Input, 2 Output | |
| IO-ATC8 | 8 Analog / TC Inputs | |
| IO-AI8 | 8 Analog Inputs | |
|
XL Digital/Analog
|
IO-D16A3-RO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs,16 Relay Outputs |
| IO-D16A3-TO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs,16 Outputs including 1 HSO | |
| EX-D16A3-RO8 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs, 8 Relay Outputs (Built-in Adapter) | |
| EX-D16A3-TO16 | 16 Digital Inputs, including 2 HSC, 3 Analog Inputs, 16 Relay Outputs (Built-in Adapter) | |
| High-speed Remote I/O Module | EXF-RC15 | 9 Digital Inputs, 4 Digital Outputts, 2 Relay Outputs, CANbus port |
Technical Specifications
Mechanical
| Operating Temperature | 0 … 50 °C |
| Dimensions | Refer Data sheet for selected IO module |
| Installation options | Mount on standard DIN rail after local/remote adapter |
Electrical
| IO Options | digital &/ analog &/ high speed, temperature &/ weight measurement |
| Supply Voltage |
|
