Unitronics

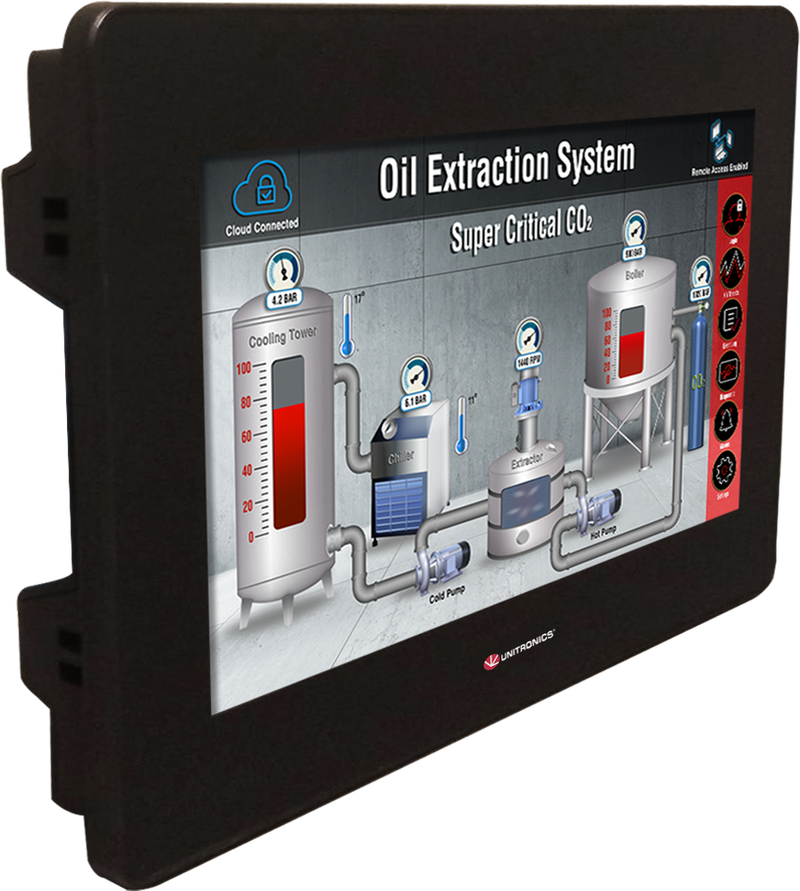

Unistream Built In
- PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations
- High-quality 5″, 7” or 10.1″ HMI touch panel
- Powerful PLC—expand up to 2048 I/O points
- Built-in COM ports: Ethernet, USB host & device
- Add-on COM modules available: CANbus, RS232, RS48
- Available in cloud series, connect to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minute
- “Cloud” PLC comes with an embedded Start-up Subscription at no extra charge
- A pre-paid 5-year Start-up Subscription plan-there is no monthly subscription fee.
- Simply connect the PLC to UniCloud, design a no-code dashboard aided by the built-in setup assistant, and go Live
Superbly compact Unistream, 5″, 7” or 10.1″ standard and 5″, 7” or 10.1″ Pro are highly compact controllers, where the PLC, HMI, and I/Os are built into a single unit and in a range of built-in I/O configurations.
| Item | Summary |
| US5-X5-B1, US7-X5-B1, US10-X5-B1 US5-X10-B1, US7-X10-B1, US10-X10-B1 |
No built-in I/Os |
| US5-X5-TR22, US7-X5-TR22, US10-X5-TR22 US5-X10-TR22, US7-X10-TR22, US10-X10-TR22 |
10 Digital, 2 Analog Inputs, 2 Transistor outputs, npn, including 2 PWM outputs. 8 Relay outputs |
| US5-X5-T24, US7-X10-T24, US10-X5-T24 US5-X10-T24, US7-X10-T24, US10-X10-T24 |
10 Digital, 2 Analog Inputs, 12 Transistor outputs, pnp, including 2 PWM outputs. |
| US5-X5-RA28, US7-X5-RA28, US7-X5-RA28 US5-X10-RA28, US7-X10-RA28, US10-X10-RA28 |
14 Digital, including 2 HSC, 2 Analog Inputs, 2 Temperature inputs, 8 Relay outputs, 2 Analog outputs |
| US5-X5-TA30, US7-X5-TA30, US10-X5-TA30 US5-X10-TA30, US7-X10-TA30, US10-X10-TA30 |
14 Digital inputs, including 2 HSC, 2 Analog inputs, 2 Temperature inputs, 10 Transistor outputs, pnp, including 2 PWM outputs, 2 Analog outputs |
| US5-X5-R38, US7-X5-R38, US10-X5-R38 US5-X10-R38, US7-X10-R38, US10-X10-R38 |
24 Digital inputs, including 4 HSC, 12 relay outputs |
| US5-X5-T42, US7-X5-T42, US10-X5-T42 US5-X10-T42, US7-X10-T42, US10-X10-T42 |
24 Digital inputs, including 4 HSC, 2 Analog inputs, 16 Transistor outputs, pnp, including 2 PWM outputs |
| US5-X5-TA32, US7-X5-TA32, US10-X5-TA32 US5-X10-TA32, US7-X10-TA32, US10-X10-TA32 |
13 Digital inputs, including 2 HSC, 6 Analog inputs, 2 Temperature inputs, 8 Transistor outputs, pnp, including 2 PWM outputs, 3 Analog outputs |
| US15-X5-B1 US15-X10-B1 |
No built-in I/Os |
Technical Specifications
Mechanical
| HMI |
|
| General Features | • OPC UA • MQTT Client • SNMP • SQL Client(Pro) • REST API • FTP server & client • Web Server(Pro)• E-mail & SMS • Remote access via VNC • VNC Client • 4G Routers |
| Operating Temperature | -20 … 55 °C |
| Cut-out | 148.2x93.2mm 196x134mm 266.60x177.30mm |
| Graphic Display | TFT, white backlight |
| Touch Screen | Resistive Analog |
Electrical
| Communication | 1 Ethernet TCP/IP • 1 USB host • 1 Mini USB for programming |
| IO Options |
|
| Program Memory | 8MB |
| Supply Voltage | 24 VDC |
