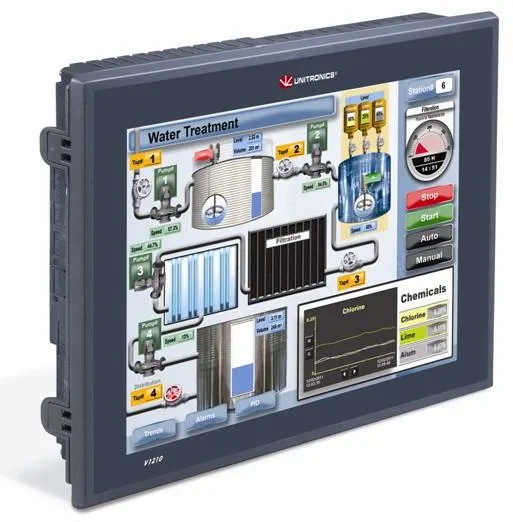

V1210
Unitronics

V1210

  • 12.1″ color touchscreen from the front
  • Snap-in I/O modules for an All-in-One controller
  • Expands up to 1000 I/Os
  • Multi-language display
  • Built-in Alarm Screen
Download Datasheet Request a Quote

Unitronics Vision series advanced programmable logic controller from the back—big & high resolution color touch screen

Technical Specifications

Mechanical

HMI
  • 12.1" color touchscreen
  • Multi-Language
General Features• Web server • E-mail & SMS • 4G Modem support • Remote access utilities
Operating Temperature0 … 50 °C
Cut-out297x228.5mm (11.69"x8.9”)
Graphic Display
  • TFT
  • LCD display
KeypadVirtual

Electrical

IO Optionsdigital, analog, high speed, temperature, and weight measurement, expand upto 1000 I/Os
Communication
  • Built in 1 Mini USB for Programming
  • 1 CANbus
  • 2 Isolated RS232/485
  • Add on 1 serial /Ethernet
Protocol
  • ModbusTCP
  • CANOpen
  • BackNet
  • FB Protocol
  • SNMP V1
  • KNX
Program Memory2MB
Supply Voltage12/24 VDC
