UniStream IO

Uni-I/O™ is a family of Input/Output modules that are compatible with the UniStream™ control platform
NEW! Ethernet-based Remote I/O, Slim modules – 12mm only
Remote Io Modules supporting analog modules with 16bit resolution

Expand locally via Uni I/O for Modular Wide range of Ethernet-based Remote I/O

Unistream Local IO Module	Item	Summary
Digital Modules (Isolated)	UID-1600	16 Digital Input (pnp/npn)

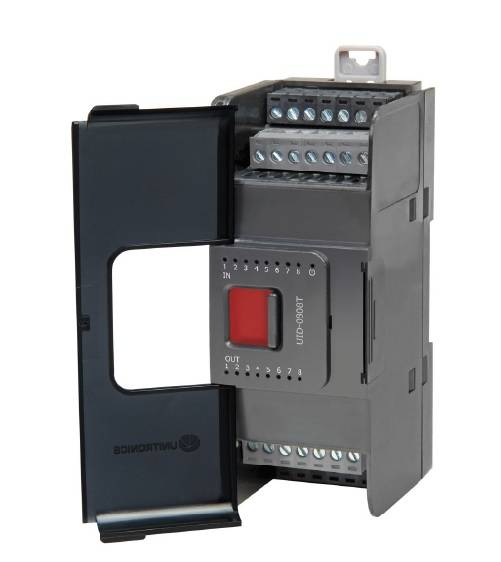

	UID-0808T	8 Digital Input (pnp/npn), 8 Digital Ouput
	UID-W1616T	16 Digital Input (pnp/npn), 16 Digital Output
	UID-0808THS	8 Digital Input (pnp/npn) including 2 HSI 250kHz , 8 Digital Ouput including 2 HSO 250kHz
	UID-0016T	16 Digital Outputs
	UID-0808R	8 Digital Input (pnp/npn), 8 Relay Output
	UID-W1616R	16 Digital Input (pnp/npn), 16 Output
	UID-0016R	16 Relay Outputs
Analog and Temperature	UIA-0006	6 Aanalog Inputs
	UIA-0402N	4 Aanalog Inputs, 2 Analog Output
	UIA-0800N	8 Aanalog Inputs
	UIA-0800NH	8 Analog Inputs With HART communication
	UIS-04PTN	4 Analog PT100/NI100/NI120
	UIS-04PTKN	4 Analog PT1000/NI1000/NI1200
	UIS-08TC	8 Thermocouple
Digital/Analog Modules	UIS-WCB1	10 Digital Inputs (pnp/npn) including 2 HSC, 2 Analog inputs, 2 RTD /TC, 8 Relay Outputs, 2 Outputs(npn) including 2 HS, 2 Analog Outputs
Digital/Analog Modules	UIS-WCB2	10 Digital Inputs (pnp/npn) including 2 HSC, 2 Analog inputs, 2 RTD /TC, 8 Outputs(pnp), 2 Outputs(npn) including 2 HS, 2 Analog Outputs

Remote Input Module

URD-0800	8 Digital inputs(sink or source)
URD-1600-8	16 Digital inputs (sink or source)
URD-3200-4	32 Digital inputs (sink or source)
URD-0400B	4 Digital inputs, 120VAC
URD-0400C	4 Digital inputs, 240VAC
URD-0200E	2, 24VDC, High Speed / Encoder Inputs
URD-0200D	2, 5VDC, High Speed / Encoder Inputs
URA-0400O	4 Analog Current Inputs 12bit
URA-0800O	8 Analog Current Inputs 12bit
URA-1600O-8	16 Analog Current Inputs 12bit
URA-0400P	4 Analog Voltage Inputs 12bit
URA-0800P	8 Analog Voltage Inputs 12bit
URA-1600P-8	16 Analog Voltage Inputs 12bit
URA-0400T	4 Analog Current Inputs 16bit
URA-0800T	8 Analog Current Inputs 16bit
URA-1600T-8	16 Analog Current Inputs 16bit
URA-0400U	4 Analog Voltage Inputs 16bit
URA-0800U	8 Analog Voltage Inputs 16bit
URA-1600U-8	16 Analog Voltage Inputs 16bit
URS-04RT	4 RTD / Resistance Input
URS-08RT-2	8 RTD / Resistance Input
URS-04TC	4 Thermocouple / mV Input
URS-08TC-2	8 Thermocouple / mV Input
URS-02LC-8	2 Load Cells Input

Remote Output Module

Technical Specifications

General Features	digital &/ analog &/ high speed, temperature &/ weight measurement" IO link sensors
Operating Temperature	-20 … 55 °C 40°C to 70°C ( Module dependent) for Remote IO
Dimensions	Module dependent see individual data sheet

IO Options	digital &/ analog &/ high speed, temperature &/ weight measurement
Communication	Multiple adapters communicates over Ethernet & IO card assembles after adapter in slots
Supply Voltage	24 VDC
