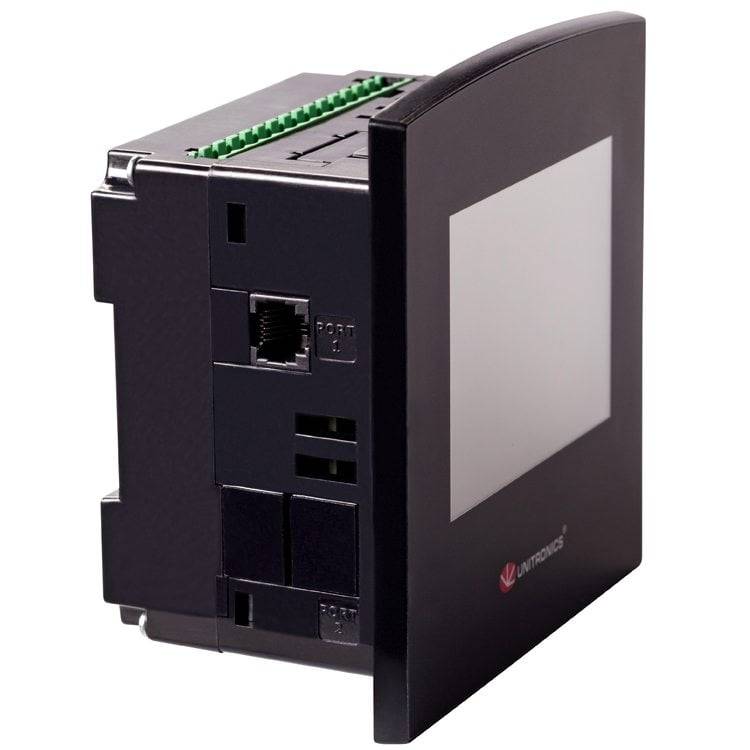

SM35
- 3.5" color touch screen
- Flat fascia, high resolution HMI color touchscreen
- Range of on-board I/O configurations
- Multi-language display
- Built-in Alarm Screen
Unitronics SAMBA series to boost the price/profit ratio with award-winning controller for low-end projects with an elegant HMI screen
| Item | Summary |
| SM35-J-R20 | 10 Digital, 2 D/A Inputs , 8 Relay Outputs |
| SM35-J-T20 | 10 Digital, 2 D/A Inputs, 8 Transistor Outputs |
| SM35-J-RA22 | 12 Digital, 1 HSC/Shaft-encoder, 2 AI , 2 PT100/TC, 8 Relay, 2 AO |
| SM35-J-TA22 | 12 Digital, 1 HSC/Shaft-encoder, 2 AI, 2 PT100/TC, 8 Transistor, 2 AO |
Technical Specifications
Mechanical
| HMI |
|
| General Features | E-mail & SMS • 3G Modem support • Remote access utilities |
| Operating Temperature | 0 … 50 °C |
| Cut-out | 92x92 mm (3.622”x3.622”) |
| Graphic Display |
|
| Keypad | Virtual |
Electrical
| IO Options | digital, analog, and high speed |
| Communication |
|
| Protocol |
|
| Program Memory | 80KB |
| Supply Voltage | 24VDC |
