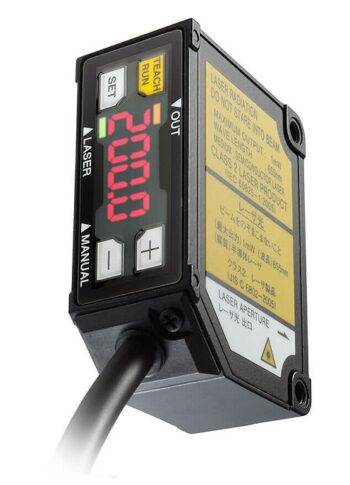

Optex FA BGS-HL/HDL
Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.
- High resolution BGS laser sensor
- Built-in controller and 4-digit display
- Stable detection regardless object color
Description
Optex High-accuracy Laser Sensors : FASTUS BGS-HL/-HDL Series achieves precise height difference detection regardless of Object color and material. This is accomplished by utilizing original “TRI-CORE” Technology found in our high-end displacement sensors.This Technology enables the highest level of performance in the industry at an economical price.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES |
|
| Protection category | IP 67 |
| Distance adjustment | Teaching / Manual |
Electrical
| Temperature range | -20 to 60℃ |
| Operating voltage | 12 to 24 VDC |
| Current consumption | 40mAmp |
| Light source | Red laser diode (wavelength 655nm) |
| Response time | 1.5ms Min. |
Applications
- Precise height difference detection on auto component assembly lines
- Detecting dark or shiny parts regardless of colour and material
- Checking component seating and stacking height in fixtures
- Thin-part and overlap detection on electronics and battery lines
- Oil-exposed machine tool areas with oil-resistant cable
