DM 18
Optex FA

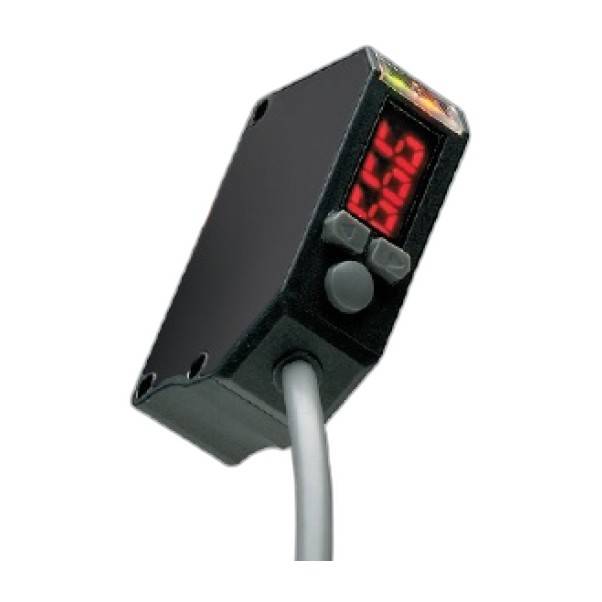

Optex FA DM 18

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Sensing distance # 18 ± 2 mm
  • Spot Size # Approx. 1 × 6 mm at a distance of 18 mm
  • Control Output # NPN/PNP open collector Max. 100 mA/30 VDC
  • 3-color (red, green, blue) Light source switching function
  • Threshold value digital adjustment function
  • 8-bank switching function
  • Spot Size Approx. 1 × 6 mm at a distance of 18 mm
Not sure this is the right model? Read the photoelectric sensors selection guide →

Description

Optex Color Sensor: RGB color/mark sensor for automatically selecting light source color

Technical Specifications

Mechanical

Sensing distance18 ± 2 mm
Light sourceR / G / B Mark mode: 1 color selection during teaching Color mode: 3 color simultaneous illumination
Spot sizeApprox. 1 × 6 mm at a distance of 18 mm
MaterialHousing: ABS Lens front cover: PMMA
Weight (including cableApprox. 75 g
Digital display
  • 7-segment
  • 3-digit display

Electrical

Supply voltage10 to 30 VDC, including 10% ripple (p-p)
Current consumption40 mA
Degree of protectionIP67

Applications

  • Detecting print registration marks on flexible packaging and pouch machines
  • Checking label colour and presence on FMCG and pharma lines
  • Verifying cap or closure colour on bottling and filling lines
  • Sorting parts by colour on auto component assembly conveyors
  • Detecting coloured threads or tapes on textile machines
  • Switching between product colour recipes on multi-SKU lines using bank memory
