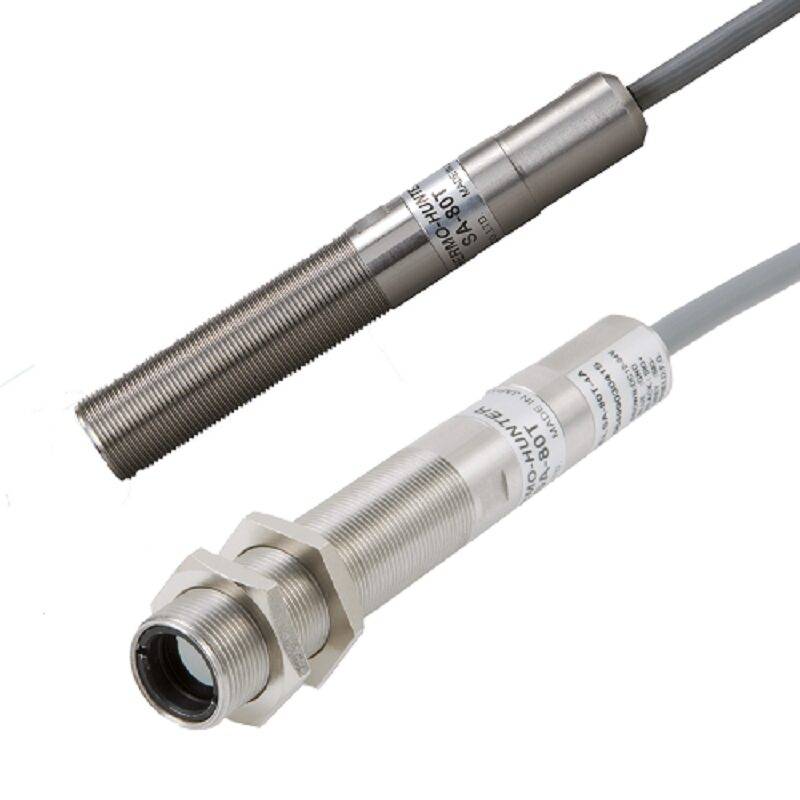

SA-80
- Measurement temperature range: 0 to 200℃ / 0 to +400℃
- Easy installation and excellent environmental resistance
- High-speed response time of 100ms/90%
- IO-Link network supported (SA-80T-4IO)
- Wide field of view of φ80mm at 500mm
Description
Optex M18 Cylindrical Thermometers IO-Link network supported (SA-80T-4IO) Various data, such as listed below, can be exchanged with control systems,via IO-Link and field networks. Cyclic data exchange: Alarm output, Measured temperature Process data of Peak hold value, Valley hold value or Internal temperature Acyclic data exchange: Emissivity, Alarm limits, Timer settings, Maintenance data and Events
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | SUS/AI |
| Protection category | IP67 |
| Optics | Silicone lens |
Electrical
| Temperature range | 0 to +70°C |
| Operating voltage | 12 to 24 VDC |
| Current consumption | 70mAmp |
| Response time | 100 ms/90% response |
| Repeatability | ±1°C (±1.8°F) |
