Optex FA TD1
Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.
- Edge Position Measurement for Any Workpiece
- Suitable for edge measurement and width/gap measurement
- Light axis alignment function for easy installation
- Easily readable amplifier unit Sold separately: CDA-DM2
Description

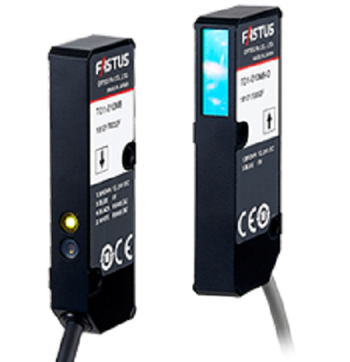

Optex Through-beam Edge Laser Sensors Through-beam edge sensor TD1 series devices use a CMOS sensor as the light receiving element, allowing for highly accurate edge position measurement of end surfaces.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES |
|
| Protection category | IP50 |
| Connection type |
|
Electrical
| Temperature range | -20 to +60°C |
| Operating voltage | 12 to 24 VDC |
| Current consumption | Emitting head: 20 mA or less (at 12 VDC) Receiving head: 80 mA or less (at 12 VDC) |
| Light source | Red semiconductor laser (Wavelength: 660 nm) |
| Sampling period | 500 μs |
Applications
- Edge position control of film, foil and paper webs
- Width and gap measurement on steel strip and sheet lines
- Edge detection of battery electrode foils on EV cell lines
- Tyre ply and rubber sheet edge measurement in tyre plants
- Glass and panel edge position checks before cutting
