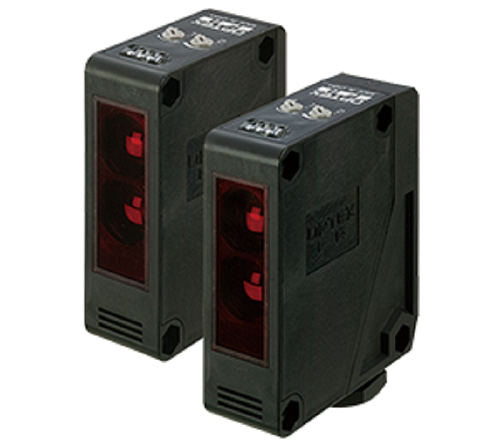

V3 / V4 Series

Universal voltage type that allows selection of connection types
Sensing distance: 70 m
Uses a red LED for the light source.
Easy adjustment of light axis even over long distances
Universal voltage types are available as terminal block types and cable types DC power types are also available as connector types

Optex Photoelectric V series : Universal Voltage SensorsV3/V4 Series Achieves 70 m sensing distance as a through-beam type. Expanded long range detection applications.

Technical Specifications

Mechanical

MATERIAL PROPERTIES	Housing: ABS (glass fiber filled, fire resistant) Front cover: Polycarbonate (retro-reflective type is PMMA)
Protection category	IP 67
Light source	Red LED
Distance adjustment	1-turn potentiometer

Electrical

Temperature range	-25 to +55°C
Operating voltage	24 to 240 VDC ±10% 24 to 240 VAC ±10% 50/60 Hz
Current consumption	4 VA or less
Response time	15 ms or less
