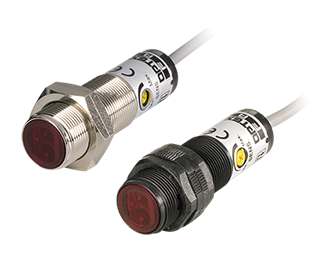

Optex FA M18 - C2 Series
Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.
- Standard M18 Threaded Type Sensor
- Selectable metal or plastic enclosure
- Rich lineup of over 100 variations
Optex Photoelectric C2 series :of M18 barrel type photoelectric sensor is available in seven models, making it great for a variety of general purpose sensing applications.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES |
|
| Protection category | IP 67 |
| Light source | Red LED |
| Distance adjustment | 1-turn potentiometer |
Electrical
| Temperature range | -25 to +55°C |
| Operating voltage | 10 to 30 VDC |
| Current consumption | 15mAmp |
| Response time | 0.5 ms max. |
Applications
- Mounting through panel holes on compact machines using M18 thread
- Part presence detection on machine tool loading stations
- Workpiece detection on bottling and packaging conveyors
- Choosing metal housings for harsher auto component lines
- General-purpose sensing on material handling equipment
