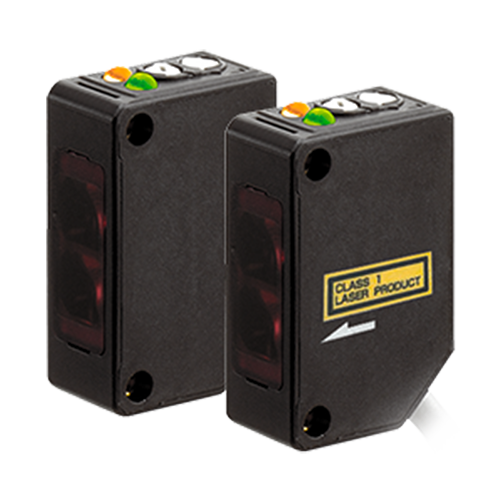

BGS-ZL

Laser and high-power narrow beam LED sensors
Highly accurate height difference detection due to low hysteresis
2 sensing ranges with laser models and 3 sensing ranges with LED models available
Fast response of 250μs on laser models and 500μs with LED models

Description

Optex Standard-sized Sensors : Laser and high-power narrow beam LED sensors. Highly accurate height difference detection due to low hysteresis; 2 sensing ranges with laser models

Technical Specifications

Mechanical

MATERIAL PROPERTIES	Case : ABS (glass fiber filled) Front cover: PMMA
Protection category	IP 67
Distance adjustment	4-turn endless potentiometer

Electrical

Temperature range	-10 to +50℃
Operating voltage	10 to 30 VDC
Current consumption	30mAmp
Light source	Red semiconductor laser Class 1 (IEC/JIS)*2 Wavelength: 650 nm Maximum output: 3.5 mW
Response time	250 μs or less
