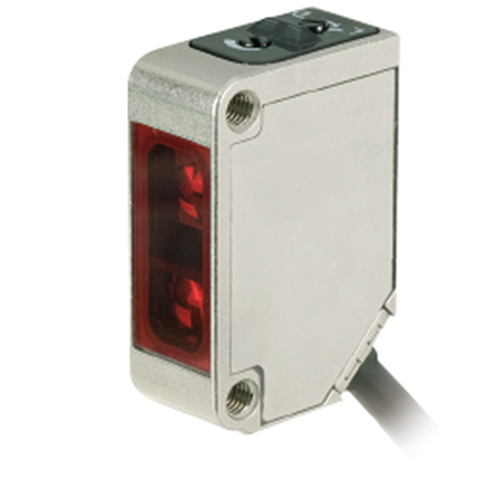

BGS-ZM
Optex FA

Optex FA BGS-ZM

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Excellent water resistance/ oil resistance
  • Suitable for automobiles, machine tools and food industry
  • Equipped with a distance adjustment to enable distance setting
  • Employs a low deterioration 4 element red LED for the Light source
  • Degree of protection: IP69K (cable type), Equivalent to IP69g (connector type)
Not sure this is the right model? Read the photoelectric sensors selection guide →

Description

Optex Stainless-steel Housing Sensors :Excellent water resistance/ oil resistance! Suitable for automobiles, machine tools and food industry.Equipped with a distance adjustment to enable distance

Technical Specifications

Mechanical

MATERIAL PROPERTIESHousing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Cable: PVC Gasket: FKM
Protection categoryIP 67
Distance adjustment8-turn endless potentiometer

Electrical

Temperature range-25 to +55℃
Operating voltage10 to 30 VDC
Current consumption28mAmp
Light source4 element red LED
Response time500 μs or less

Applications

  • Washdown detection on food and dairy processing lines
  • Coolant and oil-exposed sensing on machine tools
  • Part detection in automotive and auto component plants
  • Background-suppressed detection in wet beverage bottling areas
