CD22
Optex FA

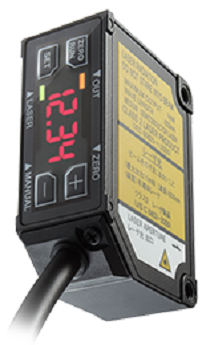

Optex FA CD22

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Newly added amplifier unit that can be connected with CC-Link communication units
  • Built-in amplifier & digital 4-digit display
  • Featuring high performance functionality like high-end models
Not sure this is the right model? Read the laser displacement sensors selection guide →

Description

Optex Compact Laser Displacement Sensors : The FASTUS CD22 series has achieved being the smallest displacement sensor in its class by adopting a new type of hybrid lens for the optical system and by integrating accumulated optical technology. By utilizing Optex FA’s know-how regarding the completion of measurement processing inside the sensor head, a feedback circuit that is the same as those on high-end displacement sensors has been equipped within the compact body.Among devices equipped with displays in the 1 μm repeat accuracy class.

Technical Specifications

Mechanical

MATERIAL PROPERTIESHousing: Aluminum die-cast Front cover: PPSU Display: PET Cable: PVC
Protection categoryIP 67
Connection type
  • Cable type: Cable length: 2 m, ø4.5 Pig tail type: Cable with M12
  • 5-pin connector
  • 300 mm length
Dimensions18 × 31 × 44 mm (W × D × H)

Electrical

Temperature range-10 to +50℃
Operating voltage12 to 24 VDC
Current consumption70mAmp
Light sourceRed semiconductor laser, wavelength: 655 nm
Sampling period500 μs/1000 μs/2000 μs/4000 μs/AUTO

Applications

  • Thickness and height measurement on auto component inspection stations
  • Rubber and sheet thickness monitoring on tyre and extrusion lines
  • Warpage and flatness checks on stamped and machined parts
  • Networked measurement over CC-Link on Mitsubishi PLC lines
  • Battery cell and electrode height checks on EV assembly lines
  • Positioning feedback for robot and pick-and-place cells
