CD33
Optex FA

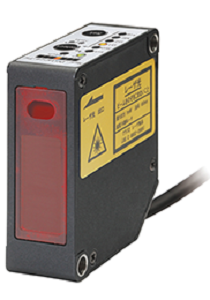

Optex FA CD33

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Half-palm size
  • Ideal for built-in use with smaller machines
  • Specular reflection types
  • Control units for Mitsubishi Electric PLC
Not sure this is the right model? Read the laser displacement sensors selection guide →

Description

Optex Small Laser Displacement Sensors :The Optex CD33 is a compact, high-accuracy laser displacement sensor designed for built-in use in smaller machines, robots, and other movable parts due to its small size and light weight

Technical Specifications

Mechanical

MATERIAL PROPERTIES
  • Housing: PBT
  • Front cover: PMMA
  • Cable: PVC
Protection categoryIP67
Connection type
  • Cable type: Cable length: 2 m (ø5) Connector type: M12
  • 8-pin

Electrical

Temperature range-10 to +45°C
Operating voltage12 to 24 VDC
Current consumption20mAmp
Light source
  • Red semiconductor laser, wavelength: 655 nm
  • Maximum output: 1 mW
Sampling period0.5 ms/1 ms/1.5 ms/2 ms

Applications

  • Built-in measurement on compact machines and robot end effectors
  • Height and step checks on electronics and PCB assembly
  • Measuring glossy and mirror surfaces with specular reflection types
  • Direct integration with Mitsubishi Electric PLC systems
  • Small-part dimension checks on precision machining lines
