CDA
Optex FA

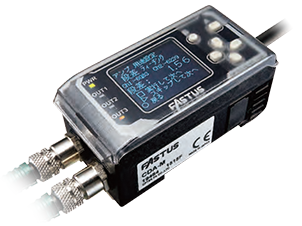

Optex FA CDA

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Amplifier unit with English display
  • Up to two displacement sensors can be connected
  • Calculation of thickness, height difference, width, and more possible
  • Equipped with analog and control outputs
Not sure this is the right model? Read the laser displacement sensors selection guide →

Description

Optex Displacement Sensor Amplifiers : Equipped with analog and control outputs CDA-M/-S models are equipped with one 4 to 20 mA analog output and three control outputs. CDA-DM2 models are equipped with two 4 to 20 mA / 0 to 10 V analog outputs and two control outputs (switchable).

Technical Specifications

Mechanical

MATERIAL PROPERTIESPolycarbonate
Protection categoryIP50
Connection typeCable type: Cable: 2 m (ø5.8)

Electrical

Temperature range-20 to +50℃
Operating voltage12 to 24 VDC
Current consumption100mAmp

Applications

  • Thickness calculation from two displacement sensors on strip lines
  • Height difference and step measurement on assembly inspection
  • Sending 4-20 mA measurement data to PLCs and recorders
  • Width calculation with TD1 edge sensors on web lines
  • Pass/fail judgement on inline quality inspection stations
