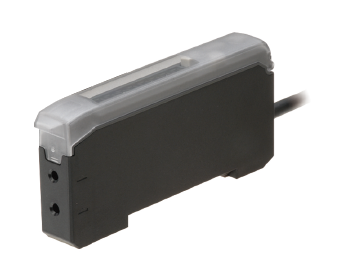

Optex FA D2RF
Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.
- Fiber amplifiers featuring dual outputs, dual displays, and dual sensitivity correction functions
- Enables detection for any application
- Water resistant types (IP66) and models with analog outputs are also available
- Adapts to usage environments with its numerous functions
Description
Optex Digital Fiber Sensor :Dual outputs, displays and sensitivity correction functions
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | Housing, cover: PC |
| Protection category | IP 50 |
| Distance adjustment | Teaching / manual adjustment |
Electrical
| Temperature range | -25 to +55°C |
| Operating voltage | 12 to 24 VDC |
| Current consumption | 45mAmp |
| Light source | 4 element red LED |
| Response time | 60 μs (Fast mode) / 250 μs (Std mode) / 2 ms (Long mode) |
Applications
- Two-point detection with dual outputs from a single amplifier
- Analog output models for level or position change monitoring
- Wet machine areas using IP66 water-resistant variants
- Small-part detection on electronics assembly and pick-and-place machines
- Fibre sensing in tight spaces on pharma packaging equipment
