Telco

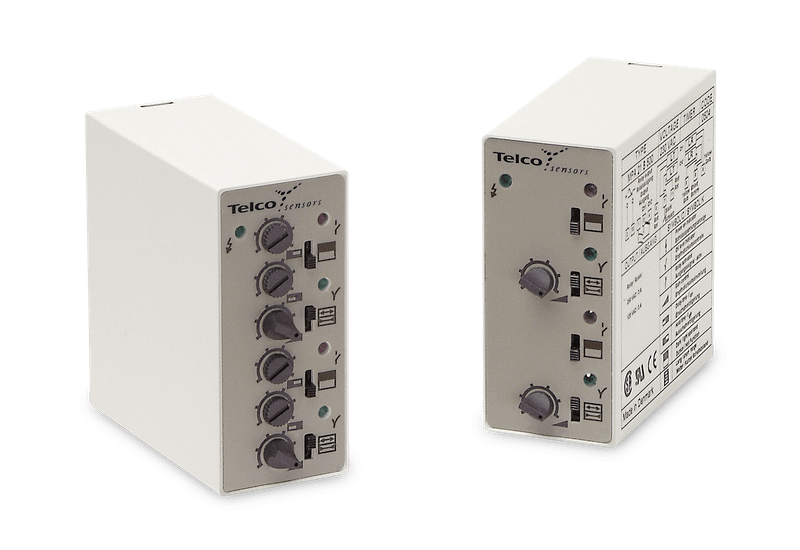

MPAE21
- Operation mode and max sensing range
- Thru-beam: 0-45 m
- Diffuse proximity: 0-3,5 m
- 230 V ac, 115 V ac, 24 V ac or 24 V dc supply voltage
- Manual sensitivity adjustment
- Adjustable on/off time delay
- 2 relays or 2 transistor outputs
- Power, output and signal level indicators
- Switch selectable light or dark function
- Switch selectable long or short range
- 11-pole DIN socket connection
Description
Telco Multiplexed Amplifier :The MPA 21 is a 2-channel, multiplexed photoelectric amplifier, which is to be used in conjunction with 2 sets of remote transmitters LT and receivers LR, from the series 100, 110 and 120.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | Polycarbonate |
| Protection category | IP 40 |
Electrical
| Temperature range | -10 to +50 °C |
| Operating voltage |
|
| Current consumption | 3.5va |
