SM 3000
Telco

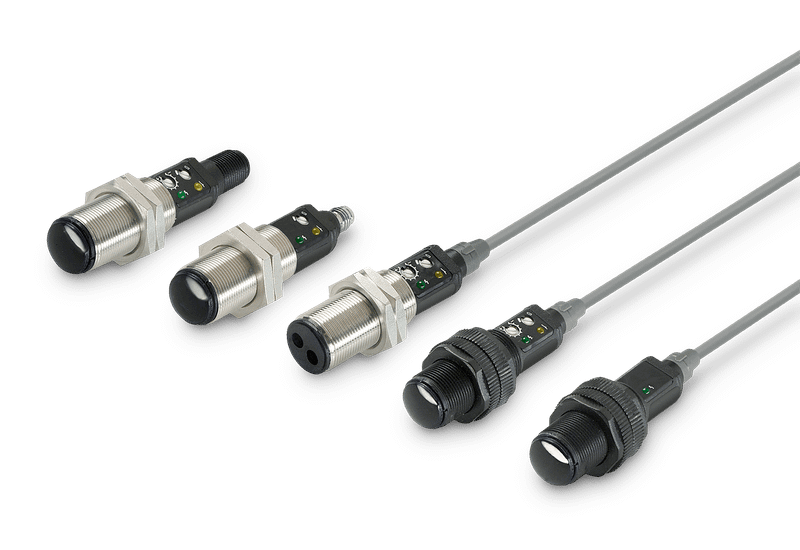

Telco SM 3000

Genuine Telco product, supplied in India by Rajdeep Automation, the authorised Telco distributor.

  • Max sensing range:Thru-beam: 1-15 m
  • Cable or plug connection
  • Sensitivity adjustment via control input
  • Wide variety of housings
  • Power and output indicator
  • High voltage tolerance to hostile environments
  • 10-30 V dc supply voltage
  • 3 wire, NPN or PNP transistor output
  • Test input
  • UL325 approved series optionally available (see datasheet for SM 3000 U series in Downloads)
  • Available with optional ATEX approval (II 3 G Ex nA IIC T6 Gc and II 3D Ex tc IIIC T100 ºC Dc)
Not sure this is the right model? Read the photoelectric sensors selection guide →

Description

Telco Thru Beam Photoelectric Sensors: The 3000 series consists of a self-contained transmitter SMT, and a receiver SMR, which are to be used in thru-beam mode

Technical Specifications

Mechanical

Housing materialnickel plated brass, polycarbonate

Electrical

Supply voltage10-30vdc
Temperature-20 to 50deg

Applications

  • Long-range thru-beam detection across conveyors and transfer lines up to 15 m
  • Safety beam for gates and doors using the UL325 approved version
  • Vehicle and object presence detection in dusty or wet outdoor areas
  • Part detection on steel and foundry handling lines with high electrical noise
  • Monitoring material flow on bulk handling and cement plant conveyors
