PA11
Telco

Telco PA11

Genuine Telco product, supplied in India by Rajdeep Automation, the authorised Telco distributor.

  • Operation mode and max sensing range:
  • Thru-beam: 0-70 m
  • Diffuse proximity: 0-5 m
  • 230 V ac, 115 V ac, 24 V ac or 24 V dc supply voltage
  • Manual sensitivity adjustment
  • Sensor LED-drive
  • Automatic sensor test
  • Adjustable on/off time delay
  • 1 relay and transistor output or 2 transistor outputs
  • Switch selectable light or dark function
  • Switch selectable long or short range
  • Power, output, sensor test and signal level indicators
  • 11-pole DIN socket connection
Not sure this is the right model? Read the photoelectric sensors selection guide →

Description

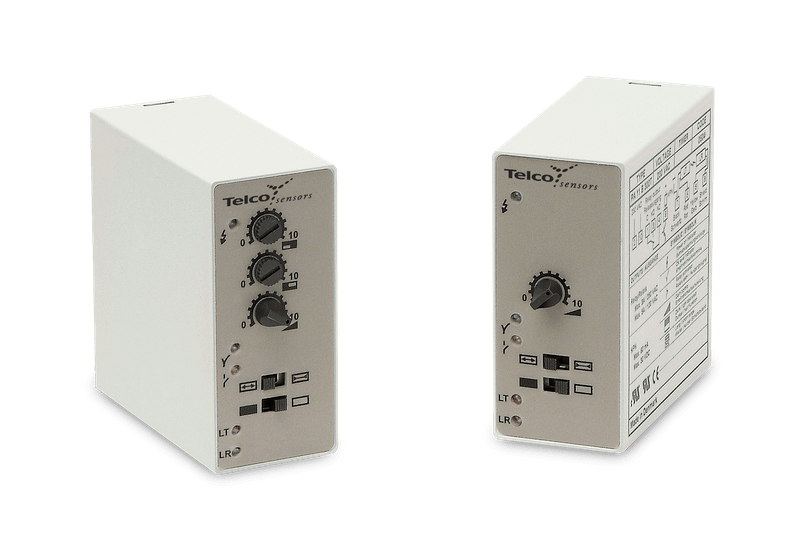

Telco Photoelectric Amplifier :The PA 11 is a 1-channel photoelectric amplifier, which is to be used in conjunction with a set of remote transmitter LT and receiver LR from the series 100, 110 and 120.

Technical Specifications

Mechanical

MATERIAL PROPERTIESPolycarbonate
Protection categoryIP 40

Electrical

Temperature range-10 to +50 °C
Operating voltage
  • 24 vac
  • 24vdc
  • 115vac
  • 215vac
Current consumption3.5va

Applications

  • Driving Telco LT and LR remote heads from a control panel
  • Long thru-beam detection up to 70 m in heavy industry
  • Mains-powered sensing with 230 V AC or 24 V supply
  • Timed jam and blockage detection using on/off delays
  • Self-testing sensor circuits with automatic sensor test
