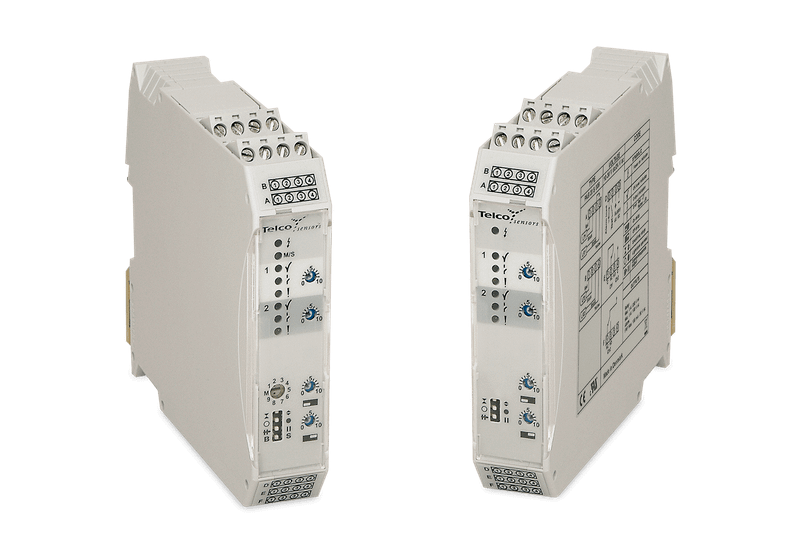

PAB
- Operation mode and max sensing range: Thru-beam: 0-70 m
- Diffuse proximity: 0-4 m,
- Supply voltage: 10-30 Vdc and 24 Vac or 90-240 Vac
- Manual sensitivity adjustment
- Sensor LED-drive
- Automatic sensor test
- Adjustable on/off time delay
- 1 relay or 1 transistor output
- Switch selectable light or dark function
- Switch selectable long or short range
- Test input, Power, output, alarm, signal level and master/slave
- address indicators
- Alarm output
- DIN rail mounting with bus function
PHOTOELECTRIC AMPLIFIER BUS SERIES
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | Polyamide |
| Temperature Range | -10 to +50 °C |
| Protection Category | IP 40 |
Electrical
| Operating Voltage |
|
| Current Consumption | 2.5va |
