PA10
Telco

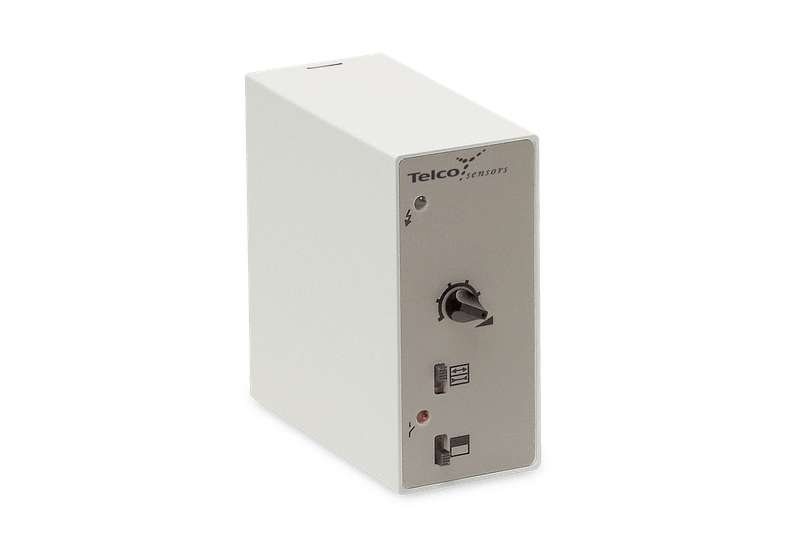

Telco PA10

Genuine Telco product, supplied in India by Rajdeep Automation, the authorised Telco distributor.

  • Operation mode and max sensing range
  • Thru-beam: 0-60 m
  • Diffuse proximity: 0-4 m
  • 230 V ac, 115 V ac, 24 V ac or 24 V dc supply voltage
  • Manual sensitivity adjustment
  • 1 relay or 1 transistor output
  • Switch selectable light or dark function
  • Switch selectable long or short range
  • Power and output indicators
  • 11-pole DIN socket connection
Not sure this is the right model? Read the photoelectric sensors selection guide →

Description

Telco Photoelectric Amplifier : The PA 10 is a 1-channel photoelectric amplifier. The PA 10 A is to be used in conjunction with a remote transmitter LT and receiver LR from series 101, whilst the PA 10 Bintended for use with series 100, 110, and 120.

Technical Specifications

Mechanical

MATERIAL PROPERTIESPolycarbonate
Protection categoryIP 40

Electrical

Temperature range–10 to +50 ºC
Operating voltage24Vdc/24Vac/115Vac/230Vac
Current consumption
  • 3
  • 2 VA

Applications

  • Single-channel amplifier for Telco LT and LR remote sensors
  • Thru-beam detection up to 60 m in industrial plants
  • Light or dark switching for presence or absence detection
  • Panel-mounted sensing on AC-powered legacy machines
