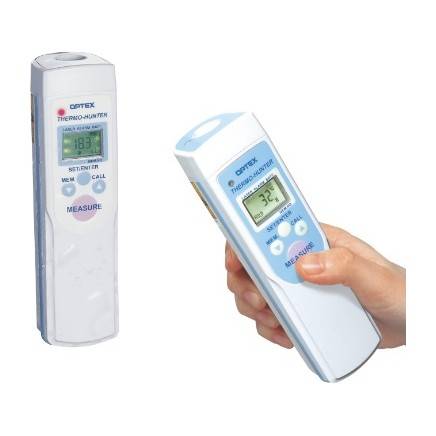

Optex FA PT-5LD
Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.
- Washable waterproof/dustproof body
- Excellent shock-resistant structure
- Built-in continuous measurement function
- 99-entry data memory function
Description
Optex Waterproof and Shock Resistant Thermometer Washable waterproof/dustproof body This product is designed to solve the problem of equipment breaking down after water or dust gets inside. The PT-5LD offers IP67 protection for a waterproof and dustproof design. The product can be used with wet hands and washed without problem.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | ABS (anti-bacterial specification) |
| Protection category | IP67 |
| Optics | Mirror type/Silicon filter |
Electrical
| Temperature range | 0 to 50°C |
| Operating voltage | 9 V alkaline battery |
| Measurement range | 0 to 500°C (32 to 932°F) (Display: −10 to 650°C (14 to 1202°F)) |
| Response time | 0.7 sec./90% response |
| Repeatability | ±1°C (1.8°F) |
Applications
- Spot temperature checks during plant maintenance rounds
- Checking bearing and motor surface temperature on machinery
- Washdown use in food processing and kitchen environments
- Checking hot surfaces up to 500 C in foundry and moulding shops
- Logging readings with the 99-entry memory during audits
