SM70
Unitronics

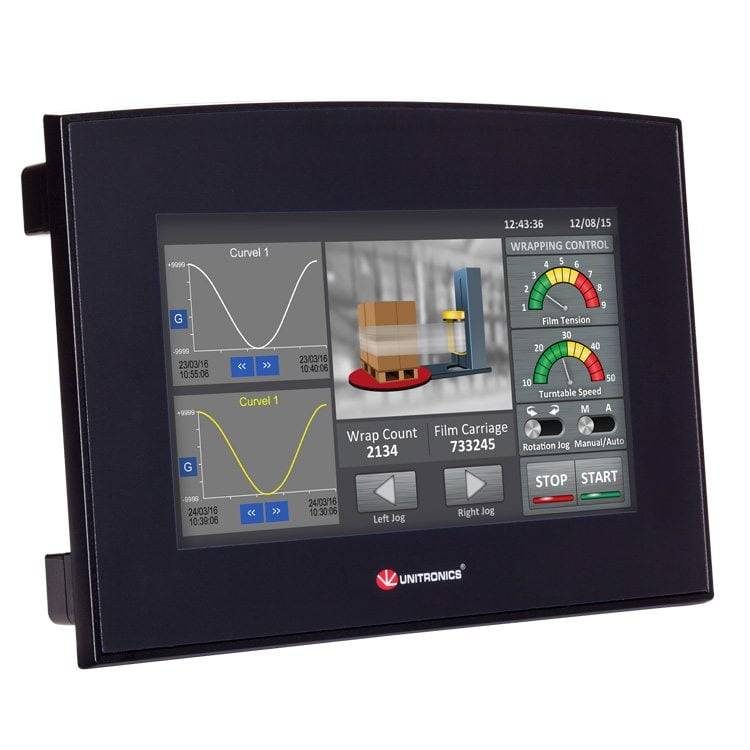

Unitronics SM70

Genuine Unitronics product, supplied in India by Rajdeep Automation, the authorised Unitronics distributor.

  • 7" color touch screen
  • Flat fascia, high resolution HMI color touchscreen
  • Range of on-board I/O configurations
  • Multi-language display
  • Built-in Alarm Screens
Not sure this is the right model? Read the plc + hmi controllers selection guide →

Unitronics SAMBA series to boost the price/profit ratio with award-winning controller for low-end projects with an elegant HMI screen

Item Summary
SM70-J-R20 10 Digital, 2 D/A Inputs, 8 Relay Outputs
SM70-J-T20 10 Digital, 2 D/A Inputs, 8 Transistor Outputs
SM70-J-RA22 12 Digital, 1 HSC/Shaft-encoder, 2 AI , 2 PT100/TC, 8 Relay, 2 AO
SM70-J-TA22 12 Digital, 1 HSC/Shaft-encoder, 2 AI, 2 PT100/TC, 8 Transistor, 2 AO

Technical Specifications

Mechanical

HMI
  • 7", color touchscreen
  • Multi-Language
General FeaturesE-mail & SMS • 3G Modem support • Remote access utilities
Operating Temperature0 … 50 °C
Cut-out193x125mm (7.59”x4.92”)
Graphic Display
  • TFT
  • LCD display
KeypadVirtual

Electrical

IO Optionsdigital, analog, and high speed
Communication
  • Built in 1 Mini USB for programming
  • Add on 1 serial /Ethernet and 1 CANbus
Protocol
  • ModbusTCP
  • CANOpen
  • BackNet
  • FB Protocol
  • SNMP V1
  • KNX
Program Memory192KB
Supply Voltage24VDC

Applications

  • 7 inch touchscreen PLC for larger OEM machines
  • Control of HVAC, boiler and utility systems
  • Batch control on small food and FMCG skids
  • Operator interface and alarms on packaging lines

Industries

AutomotiveEnergy & EnvironmentFood ProcessingPackagingPetrochemicalsPlastics & TextileWater & Waste-water
