V120
Unitronics

V120

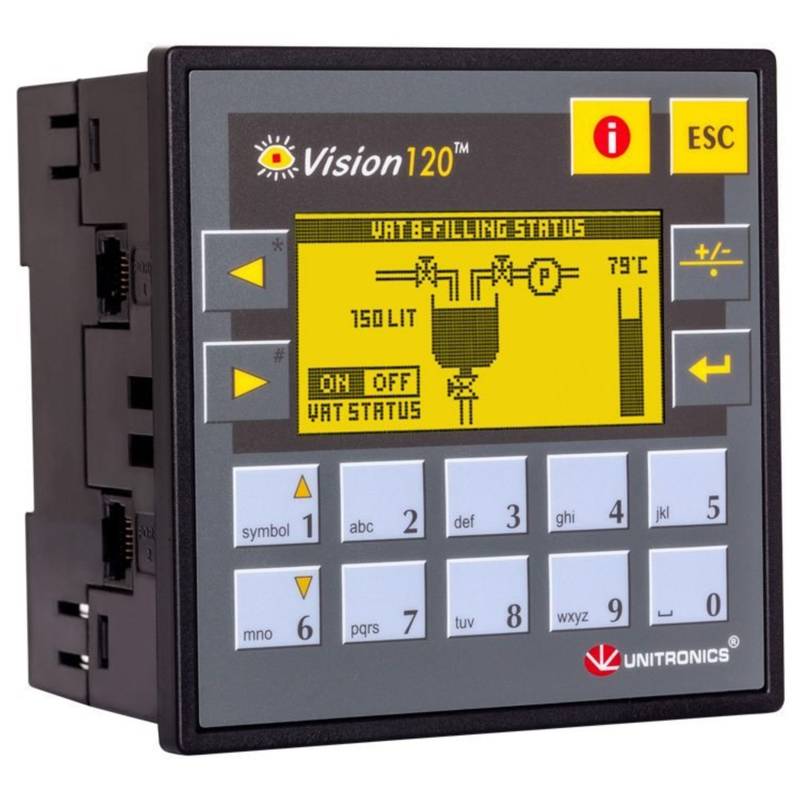

  • Vision120™- Programmable Logic
  • Full-function programmable logic controller
  • With built-in monochrome graphic LCD display
  • Keypad & onboard I/O configurations
  • Expands up to 256 I/Os
Download Datasheet Request a Quote

Unitronics Vision series full-function programmable logic controller with built-in display, keypad & onboard I/O configurations

Item Summary
V120-22-R1 10 Digital, 1 Analog Inputs, 6 Relay Outputs
V120-22-R2C 10 Digital, 2 Analog Inputs, 6 Relay Outputs
V120-22-R6C 6 Digital, 6 Analog Inputs, 6 Relay Outputs
V120-22-R34 20 Digital, 2 D/A 1 Inputs, 12 Relay Outputs
V120-22-T1 12 Digital Inputs, 12 Transistor Outputs
V120-22-T38 22 Digital Inputs, 16 Transistor Outputs
V120-22-T2C 10 Digital, 2 D/A 1 Inputs, 12 Transistor Outputs
V120-22-UN2 10 Digital, 2 D/A/TC/PT100 1 Inputs, 12 Transistor Outputs
V120-22-UA2 10 Digital, 2 D/A/TC 1 Inputs 10 Transistor, 2 Analog Outputs
V120-22-RA22 8 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs, 8 Relay, 2 Analog Outputs

Technical Specifications

Mechanical

HMI
  • 2.4"
  • Monochrome LCD graphic
  • Multi-Language
General FeaturesSMS messaging • GPRS/GSM • Remote access utilities
Operating Temperature0 … 50 °C
Cut-out92x92 mm (3.622”x3.622”)
Graphic Display
  • STN
  • LCD. Backlight Yellow-green
Keypad16 Keys

Electrical

IO Options
  • digital
  • Analog, high speed, temperature and weight measurement, expand up to 256 I/Os
CommunicationBuilt in 2 RS232/485
ProtocolRs232 / Modbus RTU
Program Memory448K
Supply Voltage24VDC
