V130
Unitronics

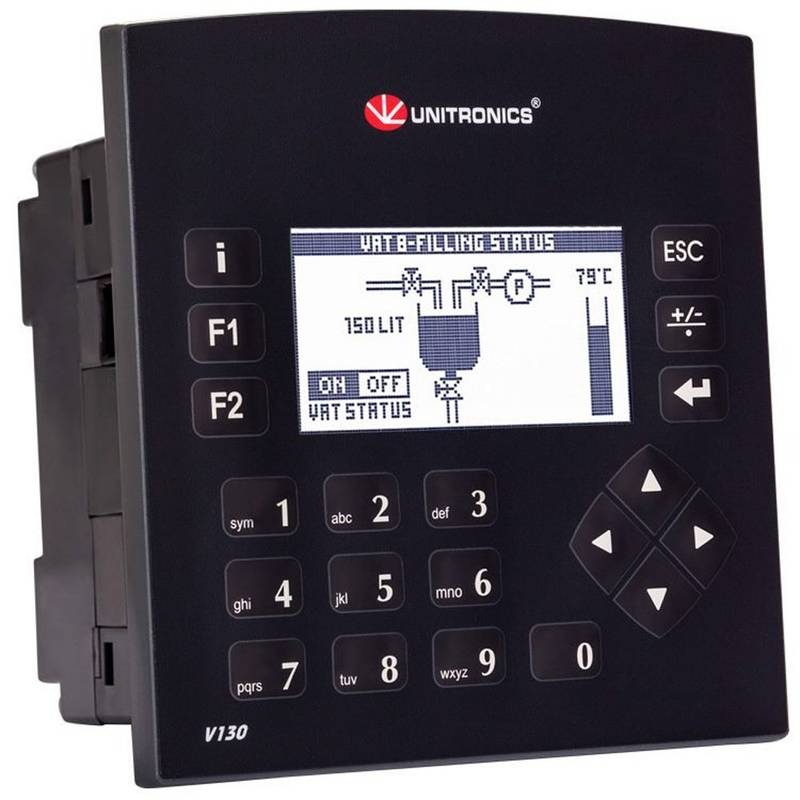

Unitronics V130

Genuine Unitronics product, supplied in India by Rajdeep Automation, the authorised Unitronics distributor.

  • Vision130-Fully functional Programmable Logic
  • LCD 2.4″ graphic display
  • Keypad & onboard I/O configurations
  • Expands up to 256 I/O
Not sure this is the right model? Read the plc + hmi controllers selection guide →

Unitronics Vision series Palm-size, powerful PLC with built-in blank & white LCD

Item Summary
V130-J-B1
V130-33-B1
No onboard I/Os
V130-J-TR20
V130-33-TR20
10 Digital, 2 D/A Inputs1, 6 Relay Outputs
2 High-speed Transistor Outputs
V130-J-R34
V130-33-R34
20 Digital, 2 D/A Inputs1
12 Relay Outputs
V130-J-TR34
V130-33-TR34
20 Digital, 2 D/A Inputs1
8 Relay, 4 High-speed Transistor Outputs
V130-J-TR6
V130-33-TR6
6 Digital, 2 D/A1, 4 Analog Inputs,6 Relay Outputs
2 High-speed Transistor Outputs
V130-J-RA22
V130-33-RA22
8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs
8 Relay, 2 Analog Outputs
V130-J-TRA22
V130-33-TRA22
8 Digital, 2 D/A, 2 PT100/ TC/Digital 1 Inputs
4 Relay, 2 Analog, 4 High-Speed Transistor Outputs
V130-J-T2
V130-33-T2
10 Digital, 2 D/A Inputs1
12 Transistor Outputs
V130-J-T38
V130-33-T38
20 Digital, 2 D/A Inputs1,
16 Transistor Outputs
V130-J-TA24
V130-33-TA24
8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs
10 Transistor, 2 Analog Outputs

Technical Specifications

Mechanical

HMI
  • 2.4"
  • Monochrome LCD graphic
  • Multi-Language
General Features• Web server • E-mail & SMS • 4G Modem support • Remote access utilities
Operating Temperature0 … 50 °C
Cut-out92x92 mm (3.622”x3.622”)
Graphic Display
  • STN
  • LCD display
Keypad20 keys

Electrical

IO Options
  • digital
  • Analog, high speed, temperature and weight measurement, expand up to 256 I/Os
Communication
  • Built in 1 RS232/485
  • Add on 1 serial /Ethernet/Profibus and 1 CANbus
Protocol
  • ModbusTCP
  • CANOpen
  • BackNet
  • FB Protocol
  • SNMP V1
  • KNX
Program Memory488K
Supply Voltage
  • 24VDC
  • 12 VDC for B1 Module only

Applications

  • Compact machine control with operator keypad on small packaging machines
  • Control of pumps, blowers and dosing units in utility rooms
  • Retrofitting relay panels on textile and plastic auxiliary machines
  • Remote alarm alerts by SMS or e-mail for unattended equipment
  • Space-saving control panels for OEM machines with a 92x92 mm cut-out

Industries

AutomotiveEnergy & EnvironmentFood ProcessingPackagingPetrochemicalsPlastics & TextileWater & Waste-water
