V2 Series
Optex FA

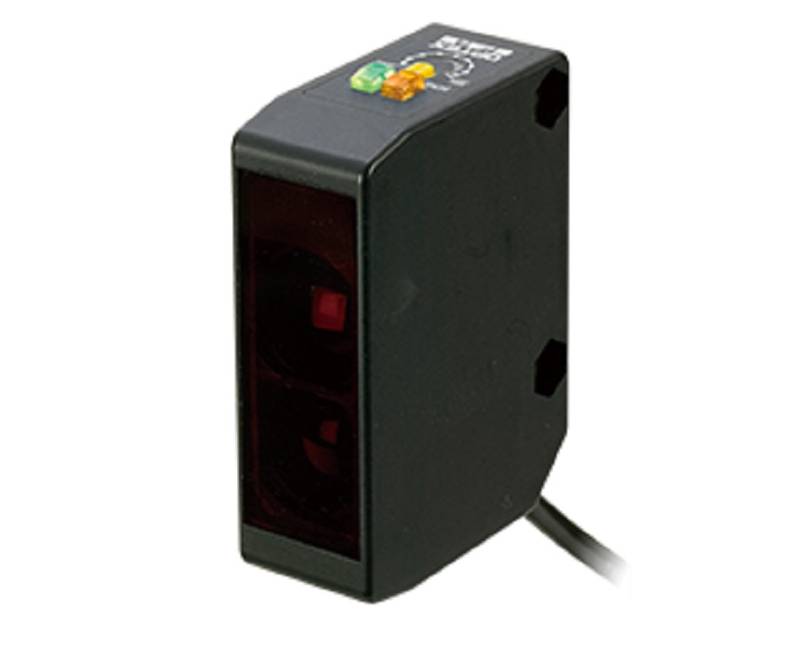

Optex FA V2 Series

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Renewed V2 series with high-level specifications
  • 70 m sensing distance (through-beam type)
  • Uses a red LED for the light source. Easy adjustment of light axis even over a long distance
  • Universal voltage type and DC power type
Not sure this is the right model? Read the photoelectric sensors selection guide →

Optex Photoelectric V series : Universal Voltage Sensors A through-beam type that achieves a 70 m sensing distance; 3.5 longer than the conventional model. Support has been increased for long distance detection applications.

Technical Specifications

Mechanical

MATERIAL PROPERTIES
  • Housing: ABS (glass fiber filled, fire resistant)
  • Front cover: Polycarbonate (retro-reflective type is PMMA)
Protection categoryIP 67
Light sourceRed LED
Distance adjustment2-turn endless potentiometer (with indicator)

Electrical

Temperature range-25 to +55°C
Operating voltage
  • 24 to 240 VAC ±10% 50/60 Hz
  • 24 to 240 VDC ±10%
Current consumption3 VA or less
Response time15 ms or less

Applications

  • Thru-beam detection up to 70 m across crane bays and wide aisles
  • Overhead crane and stacker anti-collision detection in steel plants
  • Vehicle and truck presence detection at weighbridges and gates
  • AC or DC powered sensing on legacy machinery
  • Long conveyor runs in cement, mining and bulk handling plants
