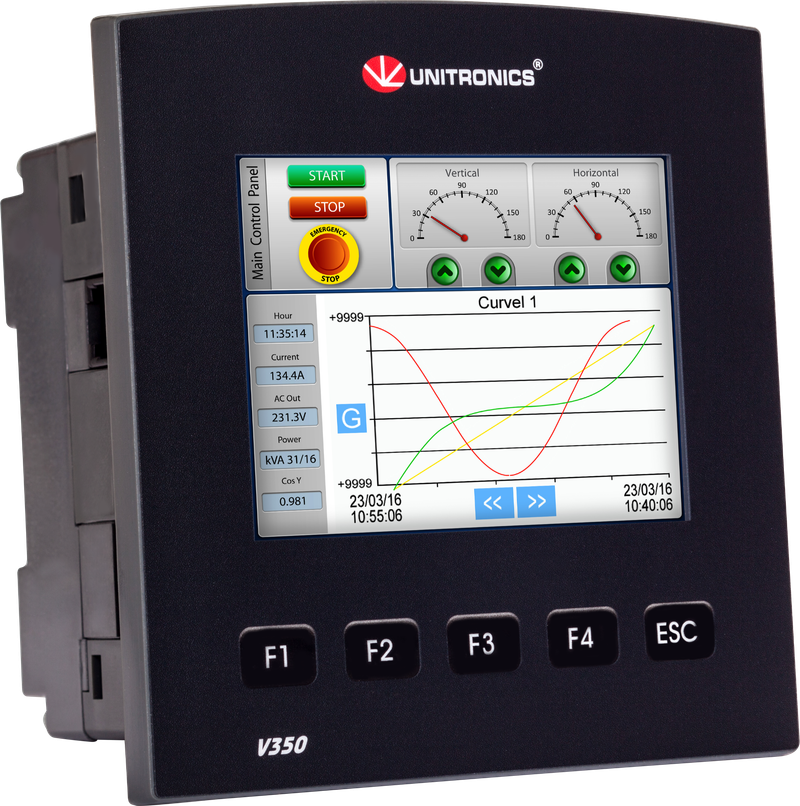

V350

Unitronics Vision series advanced programmable logic controller integrated with Incredible Touchscreen

Item	Summary
V350-J-B1 V350-35-B1	No onboard I/Os
V350-J-TR20 V350-35-TR20	10 Digital, 2 D/A Inputs 1, 6 Relay Outputs 2 High-speed Transistor Outputs
V350-J-R34 V350-35-R34	20 Digital, 2 D/A Inputs 1 12 Relay Outputs
V350-J-TR34 V350-35-TR34	20 Digital, 2 D/A Inputs 1 8 Relay, 4 High-speed Transistor Outputs
V350-J-TR6 V350-35-TR6	6 Digital, 2 D/A 1, 4 Analog Inputs, 6 Relay Outputs 2 High-speed Transistor Outputs
V350-J-RA22 V350-35-RA22	8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs 8 Relay, 2 Analog Outputs
V350-J-TRA22 V350-35-TRA22	8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs 4 Relay, 2 Analog, 4 High-Speed Transistor Outputs
V350-J-T2 V350-35-T2	10 Digital, 2 D/A Inputs 1 12 Transistor Outputs
V350-J-T38 V350-35-T38	20 Digital, 2 D/A Inputs 1 , 16 Transistor Outputs
V350-J-TA24 V350-S-TA24 V350-35-TA24 V350-JS-TA24	8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs 10 Transistor, 2 Analog Outputs

Technical Specifications

HMI	3.5" color touchscreen Multi-Language
General Features	• Web server • E-mail & SMS • 4G Modem support • Remote access utilities
Operating Temperature	0 … 50 °C For V350-JS_TA24 -30 °C to 60 °C
Cut-out	92x92 mm (3.622”x3.622”)
Graphic Display	TFT LCD display
Keypad	Virtual 5 functional keys

IO Options	digital, analog, high speed, temperature, and weight measurement, expand upto 512 I/Os
Communication	Built in 1 RS232/485 Add on 1 serial /Ethernet/Profibus and 1 CANbus
Protocol	ModbusTCP CANOpen BackNet FB Protocol SNMP V1 KNX
Program Memory	1MB
Supply Voltage	24VDC 12 VDC for B1 Module only
