V570
Unitronics

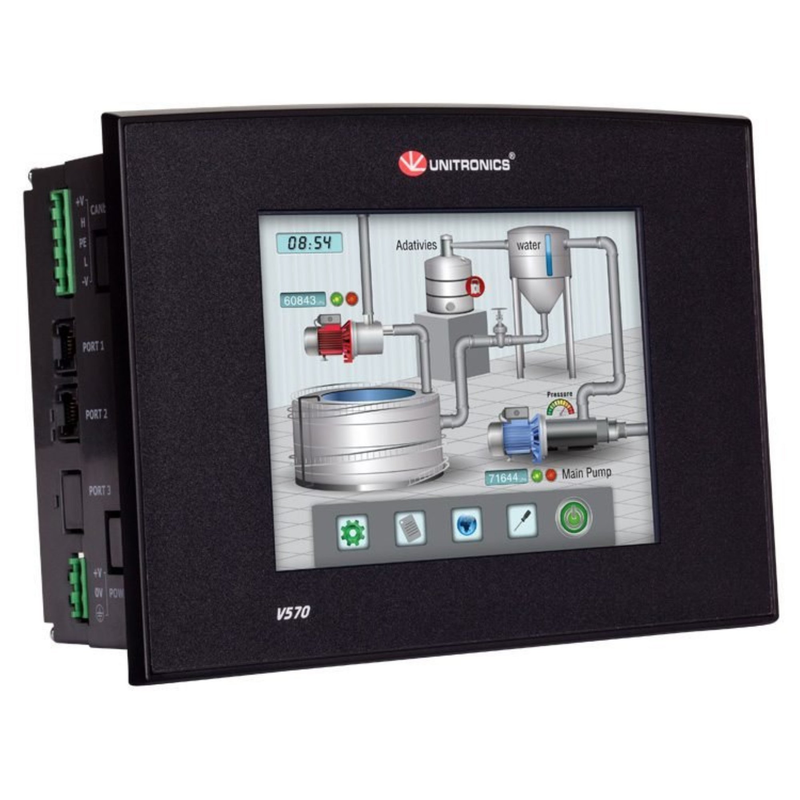

Unitronics V570

Genuine Unitronics product, supplied in India by Rajdeep Automation, the authorised Unitronics distributor.

  • 5.7″ color touchscreen from the front
  • Snap-in I/O modules for an All-in-One controller
  • Expands up to 1000 I/Os
  • Multi-language display
  • Built-in Alarm Screens
Not sure this is the right model? Read the plc + hmi controllers selection guide →

Unitronics Vision series advanced programmable logic controller from the back: big & high resolution color touch screen

Technical Specifications

Mechanical

HMI
  • 5.7" color touchscreen
  • Multi-Language
General Features• Web server • E-mail & SMS • 4G Modem support • Remote access utilities
Operating Temperature0 … 50 °C
Cut-out124.5 x 182 mm (4.9”x 7.16”)
Graphic Display
  • TFT
  • LCD display
KeypadVirtual

Electrical

IO Optionsdigital, analog, high speed, temperature, and weight measurement, expand upto 1000 I/Os
Communication
  • Built in 1 Mini USB for Programming
  • 1 CANbus
  • 2 Isolated RS232/485
  • Add on 1 serial /Ethernet
Protocol
  • ModbusTCP
  • CANOpen
  • BackNet
  • FB Protocol
  • SNMP V1
  • KNX
Program Memory2MB
Supply Voltage12/24 VDC

Applications

  • All-in-one PLC and 5.7 inch HMI for special-purpose machines
  • Process control on pharma, chemical and food batching skids
  • Multi-station control of assembly lines with up to 1000 I/Os
  • Alarm screens and trends on water and effluent treatment plants
  • Machine control on auto component testing and leak-test rigs

Industries

AutomotiveEnergy & EnvironmentFood ProcessingPackagingPetrochemicalsPlastics & TextileWater & Waste-water
