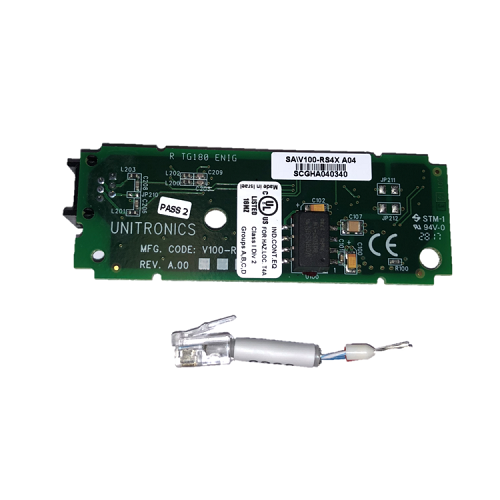

Vision/SAMBA Com module
Unitronics

Vision/SAMBA Com module

  • Vision™ and Samba™ Communication Modules
  • Isolated /non-Isolated RS232/485
  • Ethernet-Wide Temperature
  • CANbus/CANOpen
  • PROFIBUS slave supported by Vxxx Series Only
Download Datasheet Request a Quote

Unitronics Vision series enhance communication capabilities

Models Ethernet RS232/RS485 Isolated RS232/RS485 CANbus Profibus
SAMBA V100-17-ET2 V100-17-RS4 V100-17-RS4X V100-17-CAN None

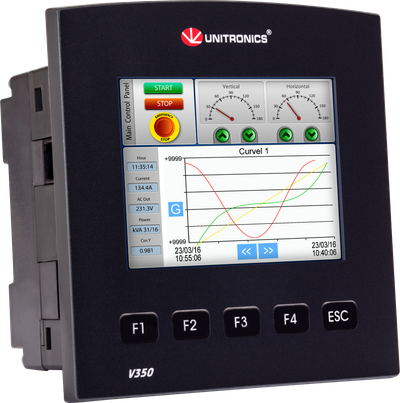

V130, V350, V430 V100-17-ET2
V100-S-ET23		 V100-17-RS4 V100-17-RS4X V100-17-CAN
V100-S-CAN		 V100-17-PB1
V570, V560, V1040, V1210 V200-19-ET2 V200-19-RS4 V200-19-RS4-X Build in None
V700 Built-in V100-17-RS4 V100-17-RS4X V100-17-CAN V100-17-PB1

Technical Specifications

Mechanical

General Featuresonly V130/350/430/700 support Profibus as slave
Operating Temperature
  • 0 … 50 °C
  • For V100-S-ET2 & V100-S-CAN -30 °C to 60 °C
Installation optionsAdd on card assembles inside controller
DimensionsCompact fits inside controller

Electrical

Communication
  • Add on RS232/485
  • Ethernet
  • Profibus
Protocol
  • ModbusTCP
  • CANOpen
  • BackNet
  • FB Protocol
  • SNMP V1
  • KNX
Baud rate
  • Serial -Baud rate 300– 115
  • 200 Kbps
  • Ethernet transmission speed 10/100Mbps
  • CANOpen - 100Kbps-1Mbps
Supply VoltageFrom Controller
