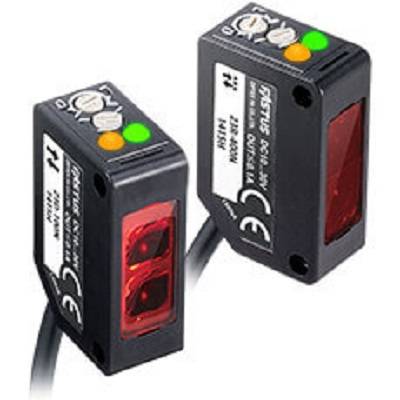

Z3 Series
Optex FA

Optex FA Z3 Series

Genuine Optex FA product, supplied in India by Rajdeep Automation, the authorised Optex FA distributor.

  • Industry standard sensor
  • Longest sensing distance in class at 25 m*
  • Significantly reduced dead zone
  • Indicators visible from any angle
  • NEW MODEL New lineup of through-beam type with high power IR LED
  • Red LED type, with through-beam type
Not sure this is the right model? Read the photoelectric sensors selection guide →

Optex Photoelectric Sensor : Total volume of Z Series photoelectric sensors sold around the world exceeds 3 million units. The FASTUS Z3 Series built-in amplifier photoelectric sensors with improved detection performance is the successor of the easy-to-use Z Series. This series takes the functionality, practicality and cost performance required of general purpose photoelectric sensors to the next level.

Technical Specifications

Mechanical

MATERIAL PROPERTIES
  • Housing: ABS
  • Front cover: PMMA
Protection categoryIP 67
Light source4 element red LED, wavelength 640 nm
Distance adjustment1-turn potentiometer

Electrical

Temperature range-25 to +55°C
Operating voltage10 to 30 VDC
Current consumption15mAmp
Response time500 μs or less

Applications

  • Box and carton detection on logistics and packaging conveyors
  • Thru-beam detection up to 25 m across wide machine openings
  • Part presence checks at auto component assembly stations
  • Detecting small objects close to the sensor due to reduced dead zone
  • Standard replacement photo sensor for existing machine builds
